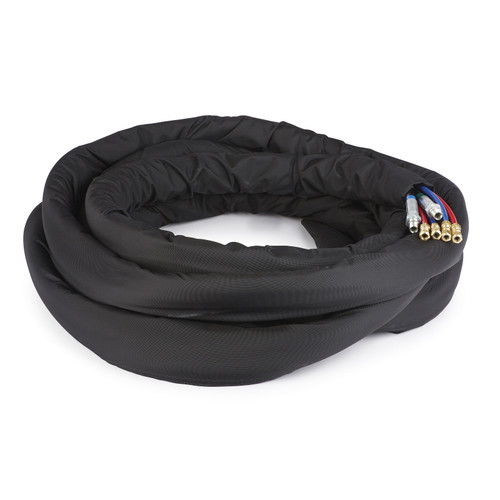

GRACO 248119 - Water Heated Hose, 7400 PSI, 3/8" x 50 ft

Water jacketed heated hose designed for explosive atmosphere Class I Div I applications, providing reliable heated fluid transfer for high-pressure spray systems in hazardous environments

Water heated hoses are designed for use with plural component high-pressure airless equipment, such as the Graco XP and XM sprayers.

Additional Specifications

• Inside Diameter: 3/8 in (9.53 mm)
• Length: 50 ft (15.2 m)
• Thread: 3/8 npsm(F) for both Thread A and Thread B
• Max Working Pressure: 500 bar (50 MPa - 7250 PSI)
• Material: Water jacketed construction
• Classification: Class I Div I explosive atmosphere
• Jacket Type: Water jacketed
• Hose Diameter: 3/8 (9.53) in. (mm)
• Series: E

Specifications

Features

• Water jacketed design for temperature control
• High pressure rating up to 7250 PSI
• 50 foot length for extended reach
• Water jacketed design for consistent temperature control
• Rated for explosive atmosphere Class I Div I environments
• High pressure rating of 7250 PSI

Applications

• High-pressure spray applications
• Temperature-sensitive coating applications
• Cold weather spraying operations
• Explosive atmosphere environments (Class I Div I)
• High-pressure spray applications requiring heated materials
• Industrial coating applications in hazardous locations

Compatible Equipment

• GRACO XM spray systems
• High-pressure airless spray equipment

Related Parts

• 248118 - Water Heated Hose, 7250 PSI, 1/2", 50 ft (15 m)
• 248120 - Water Heated Hose, 7250 PSI, 1/2", 50 ft (15 m)
• 248121 - Water Heated Hose, 7250 PSI, 3/8" x 50 ft

Part of GRACO's water jacketed heated hose series designed to maintain fluid temperature during spray operations Part of the water jacketed heated hose family, specifically designed for use in explosive atmospheres This is part of the Dual Hose Assembly series with CE approval marking. Both ends have 3/8 npsm(F) threads.

Reference Manuals

• 340146 (Page 7)
• 3J0679EN (Page 13)
• 3J0679ENEU (Page 13)
• 313259 (Page 6)
• 3A5313 (Page 4)
