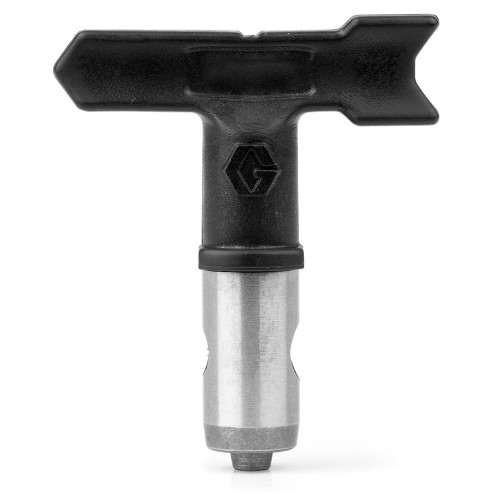

GRACO 286833 - RAC 5 SwitchTip, 833
The Reverse-A-Clean (RAC) 833 RAC 5 SwitchTip produces a 16 to 18 inch fan and has a 0.033 inch orifice.
Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (black handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
Additional Specifications
- Tip Size: 8-12
- Orifice Range: 20-30
| Compatible Material | Lacquer to Mastic, Latex Paint |
| For Use With | RAC 5 HandTite Tip Guard |
| Maximum Fan Width (in) | 16 |
| Maximum Flow Rate (GPM) | 1.17 |
| Maximum Working Pressure (psi) | 4050 |
| Minimum Fan Width (in) | 16 |
| Model | RAC 5 |
| Orifice Diameter (in) | 0.033 |
| Pattern Size (in) | 16 to 18 |
| Series | SwitchTip |
| Spray Pattern | Fan |
| Tip Type | Airless |
| Type | Spray Tip |
Related Parts
This is a spray tip with 8-12 fan width and 20-30 orifice size range. The chart shows different tip configurations with visual representations of spray patterns. Tips smaller than a 0.021 orifice may result in poorly mixed material or frequently clogged tips.
