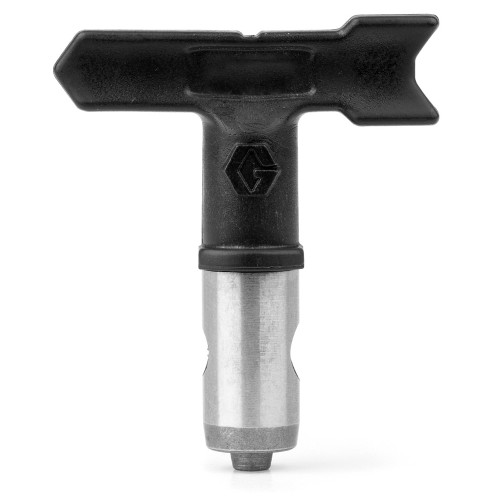

GRACO 286835 - RAC 5 SwitchTip, 835, 3300 PSI
RAC 5 SwitchTip designed for use with GRACO LineLazer V 200MMA striping equipment. Part of the RAC 5 tip system that provides reliable spray patterns for line marking applications.
The Reverse-A-Clean (RAC) 835 RAC 5 SwitchTip produces a 16 to 18 inch fan and has a 0.035 inch orifice.
Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (black handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
Additional Specifications
- Max Working Pressure: up to 227 bar (3300 PSI)
- Max Tip Size 1 Gun: 0.047"
- Max Tip Size 2 Guns: 0.033"
- Max Tip Size 3 Guns: -
- Tip Size: 8-12 (20-30)
- Fan Width: 20-30 cm
| Compatible Material | Lacquer to Mastic, Latex Paint |
| For Use With | RAC 5 HandTite Tip Guard |
| Maximum Fan Width (in) | 16 |
| Maximum Flow Rate (GPM) | 1.31 |
| Maximum Working Pressure (psi) | 4050 |
| Minimum Fan Width (in) | 16 |
| Model | RAC 5 |
| Orifice Diameter (in) | 0.035 |
| Pattern Size (in) | 16 to 18 |
| Series | SwitchTip |
| Spray Pattern | Fan |
| Tip Type | Airless |
| Type | Spray Tip |
Features
- RAC 5 SwitchTip technology
- Compatible with high pressure striping systems
- Designed for line marking applications
Applications
- Line striping
- Pavement marking
- Athletic field marking
- Parking lot striping
Compatible Equipment
- LineLazer V 200MMA 1:1
- Fusion gun (25E471)
- Air-Purge Fusion gun with internal mixing
Related Parts
Used with LineLazer V 200MMA system that features hydraulic 1:1 proportioner and can handle maximum pressure of 227 bar (3300 PSI) This is a spray tip with an 8-12 inch fan width at 12 inches distance and 20-30 cm fan width. The tip has a 0.035 inch orifice. Tips smaller than 0.021 orifice may result in poorly mixed material or frequently clogged tips.
