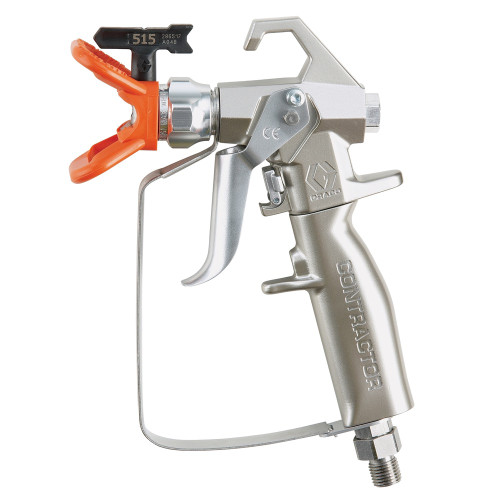

GRACO 288421 - Contractor Airless Spray Gun, 2 Finger Trigger, RAC 5 517 SwitchTip, Durable Nickel Finish, 3600 PSI
The GRACO 288421 Contractor Airless Spray Gun is designed to be the longest lasting and most reliable airless spray gun, providing maximum performance, reliability and comfort. Features a durable nickel finish that is corrosion resistant and easier to clean, with a 2-finger trigger design for comfortable operation.
The Contractor Airless Spray Gun is the industry standard for performance and durability. Includes a 2-finger trigger and a RAC 5 517 SwitchTip and Guard.
- Exclusive FlexSeal Needle
- Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
- Fluid pushes on seal to quickly shut off needle and reduce spitting
- Spring is located outside fluid path for better flow
- Helps eliminate pack out and slow needle shut-off
- Reduced Gun Spitting
- Repositioned seat is closer to the tip, eliminating 60% of the dead space
- Less paint left between needle and tip results in less spitting
- Ergonomic Design
- Form-fitted handle provides maximum control and comfort
- Detachable trigger guard swings clear of gun handle for easy filter access
- Lightweight design reduces operator fatigue
- Trigger Lock
- Smooth, lightweight trigger pull with simple, thumb-engaged safety lock
- Modular Needle Design
- Simply remove the trigger cross pin and unthread front housing to change out needle
- EasyGlide Swivel
- Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
- Easy Out Gun Filter
- Filters from the inside out to prevent filter from collapsing
- Interchangeable with all Contractor series guns
Additional Specifications
- Max Working Pressure: 248 bar (2.48 MPa, 3600 PSI)
- Material: durable nickel finish
- Orifice Diameter: 3.2 mm (0.125")
- Weight: 624 gr (22 oz)
- Trigger Type: 2-finger trigger
- Includes Guard: yes
| Component A Inlet Size (in) | 1/4 |
| Component A Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.125 |
| For Use With | Airless Sprayers |
| Gun Activation | Manual |
| Gun Type | Airless Gun |
| Gun Weight (oz) | 22 |
| Includes | RAC 5 517 SwitchTip, RAC 5 HandTite Guard |
| Maximum Fluid Pressure (MPa) | 24.8 |
| Maximum Fluid Pressure (psi) | 3600 |
| Model | Contractor |
| Product Type | Spray Gun |
| Series | Airless Spray Gun |
| Spray Type | Airless |
| Trigger Lock | Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
- Longest lasting and most reliable airless spray gun design
- Maximum performance, reliability and comfort
- Durable nickel finish - corrosion resistant
- Easier to clean
- 2-finger trigger for comfortable operation
- RAC 5 517 Switch tip included
Applications
- Professional contractor painting applications
- Airless spray painting projects
- Residential painting projects
- Commercial painting applications
- Industrial coating jobs
- Professional airless spraying
Compatible Equipment
- Airless spray systems operating at 248 bar (2.48 MPa, 3600 PSI)
- GMAX II sprayers
- GH 130-300 series sprayers
Related Parts
- 288420 - Contractor Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip
- 288425 - Contractor Airless Spray Gun, 4 Finger Trigger, RAC X 517 SwitchTip
- 288429 - Contractor Ftx Airless Spray Gun, 2 Finger Trigger, Rac x 515 Switchtip
- 288430 - Contractor FTx Airless Spray Gun, 4 Finger Trigger, RAC X 515 SwitchTip
- 288431 - Contractor FTx Airless Spray Gun, 4 Finger Trigger, RAC 5 515 SwitchTip
- 288420 - Contractor Gun (2-finger) with RAC X 517 SwitchTip and Guard
- 288425 - Contractor Gun (4-finger) with RAC X 517 SwitchTip and Guard
- 288430 - FTx Gun (4-finger) with RAC X 515 SwitchTip and Guard
- 288429 - FTx Gun (2-finger) with RAC X 515 SwitchTip and Guard
- 288431 - FTx Gun (4-finger) with RAC 5 515 SwitchTip
Kit Contents
- RAC 5 517 SwitchTip
- RAC 5 Guard
Part of the Contractor Series 248 BAR airless spray gun family. Comes with RAC 5 517 Switch tip and RAC 5 HandTite guard. Part of the NEW CONTRACTOR & FTX GUNS product line. RAC 5 tips are ideal for residential, commercial and industrial jobs. Part of GRACO's New Contractor Gun series designed as essential tools for maximum productivity and performance
