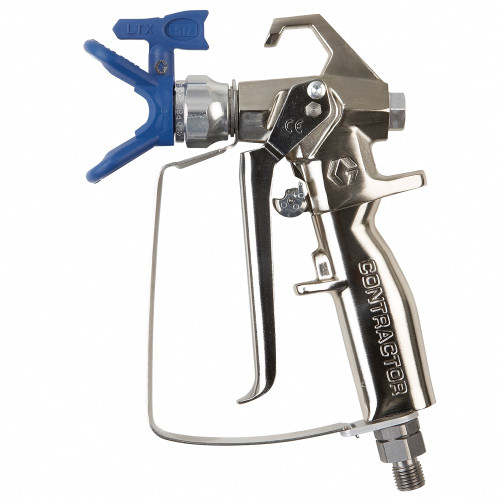

GRACO 288425 - Contractor Airless Spray Gun, 4 Finger Trigger, RAC x 517 SwitchTip, Durable nickel finish, 3600 PSI
The Contractor 288425 airless spray gun from GRACO is designed to be the longest lasting and most reliable airless spray gun, providing maximum performance, reliability and comfort. Features a durable nickel finish that is corrosion resistant and easier to clean, with a 4-finger trigger design for improved control and comfort during extended use.
The Contractor Airless Spray Gun is the industry standard for performance and durability. Includes a 4-finger trigger and a RAC X 517 SwitchTip and Guard.
- Exclusive FlexSeal Needle
- Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
- Fluid pushes on seal to quickly shut off needle and reduce spitting
- Spring is located outside fluid path for better flow
- Helps eliminate pack out and slow needle shut-off
- Reduced Gun Spitting
- Repositioned seat is closer to the tip, eliminating 60% of the dead space
- Less paint left between needle and tip results in less spitting
- Ergonomic Design
- Form-fitted handle provides maximum control and comfort
- Detachable trigger guard swings clear of gun handle for easy filter access
- Lightweight design reduces operator fatigue
- Trigger Lock
- Smooth, lightweight trigger pull with simple, thumb-engaged safety lock
- Modular Needle Design
- Simply remove the trigger cross pin and unthread front housing to change out needle
- EasyGlide Swivel
- Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
- Easy Out Gun Filter
- Filters from the inside out to prevent filter from collapsing
- Interchangeable with all Contractor series guns
Additional Specifications
- Max Working Pressure: 248 bar (24.8 MPa, 3600 PSI)
- Material: Durable nickel finish
- Orifice Diameter: 3.2 mm (0.125")
- Weight: 624 gr (22 oz)
- Tip Guard: RAC X HandTite guard
- Guard Included: Yes
| Component A Inlet Size (in) | 1/4 |
| Component A Inlet Thread Type | NPSM |
| Component Type | Single Component |
| Fluid Orifice Size (in) | 0.125 |
| For Use With | Airless Sprayers |
| Gun Activation | Manual |
| Gun Type | Airless Gun |
| Gun Weight (oz) | 22 |
| Includes | RAC X 517 SwitchTip, RAC X HandTite Guard |
| Maximum Fluid Pressure (MPa) | 24.8 |
| Maximum Fluid Pressure (psi) | 3600 |
| Model | Contractor |
| Product Type | Spray Gun |
| Series | Airless Spray Gun |
| Spray Type | Airless |
| Trigger Lock | Locking |
| Trigger Type | Four-Finger |
| Type | Spray Gun |
Features
- Longest lasting and most reliable airless spray gun design
- Maximum performance, reliability and comfort
- Durable nickel finish - corrosion resistant and easier to clean
- 4-finger trigger for improved control
- RAC X 517 Switch tip included
- RAC X HandTite guard included
Applications
- Professional contractor applications
- High-pressure airless spraying applications up to 3600 PSI
- Contractor applications
- Professional painting projects
- Commercial painting
- Professional contractor spraying
Compatible Equipment
- Airless spray systems operating up to 248 bar (3600 PSI)
- Equipment with 1/4 NPSM inlet connections
- GMAX II sprayers
- GH 130-300 series sprayers
Related Parts
Kit Contents
- RAC X 517 SwitchTip
- Tip Guard
- RAC X 517 tip
Part of GRACO's Contractor Series - 248 BAR airless spray gun family. Includes RAC X 517 Switch tip and RAC X HandTite guard. Part of the New Contractor & FTX Guns family, designed for professional contractors requiring reliable spray gun performance Part of GRACO's airless gun accessories line designed for maximum productivity and performance
