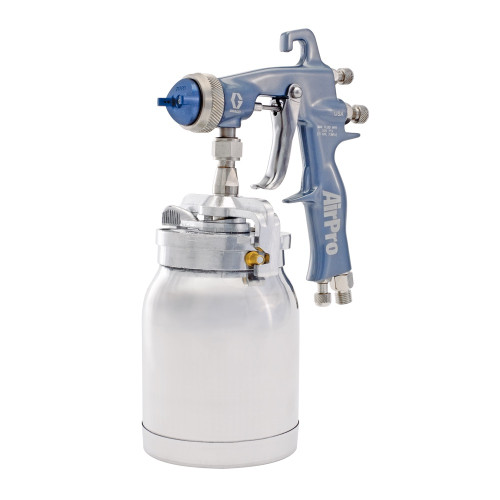

GRACO 289028 - AirPro Air Spray Siphon Feed Gun, Conventional .055" Nozzle, Metal Siphon Cup
GRACO 289028 is an AirPro Air Spray Gun designed for conventional spray applications with siphon feed system and metal siphon cup. Features a 0.055 inch (1.4mm) nozzle optimized for light-medium viscosity materials, delivering 4-10 oz/min (0.12-0.30 l/min) flow rate for professional finishing applications.
The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility.
- Even material distribution through the spray pattern for optimum coverage
- Improved transfer efficiency through reduced air consumption
- Enhanced atomization through material-specific aircaps
- Well balanced and lightweight (410 grams) gun makes it easier to spray at a steady rate all day
- Ultra-light trigger pull reduces operator muscle stress
- Ergonomic gun handle provides a comfortable grip
- Rounded control knobs for operator comfort
- Optimize spray performance with our cutting edge aircap and nozzle design
- Choose from a wide range of gun models to meet the needs of your specific application
Additional Specifications
- Flow Rate: 4-10 oz/min (0.12-0.30 l/min)
- Max Working Pressure: N/A
- Material: light-medium viscosity materials
- Nozzle Size: 0.055" (1.4)
- Feed Type: Siphon with Cup
- Aircap Kit: 289769
- Needle Nozzle Kit: 289487
- Orifice Size: 0.055 (1.4) mm
- Max Hvlp Compliant Air Pressure: N/A
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | Specialty |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Siphon Feed |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.055 |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Conventional Gun |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Fluid Temperature (°F) | 109 |
| Model | AirPro |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
- Conventional spray technology for high-quality finishes
- Siphon feed system with metal cup for durability
- 0.055 inch nozzle for precise spray pattern
- Optimized for light-medium viscosity materials
- Professional flow rate control
- Conventional spray pattern for general purpose applications
Applications
- Professional spray finishing
- Light to medium viscosity coatings
- Industrial painting applications
- Automotive refinishing
- General purpose spray finishing
- Medium viscosity coatings
Compatible Equipment
Related Parts
Part of the AirPro siphon feed gun family with metal siphon cup configuration. Requires separate aircap kit (289769) and needle/nozzle kit (289487) for complete operation. Part of the Siphon Feed Guns with Siphon Cup family. Replacement parts available separately including aircan kits, needle/nozzle kits, and needle tip kits. This is a conventional spray gun model with siphon cup configuration. Part of a series that includes both siphon cup and non-siphon cup variants with different orifice sizes and spray types (Conventional, HVLP, Compliant).
