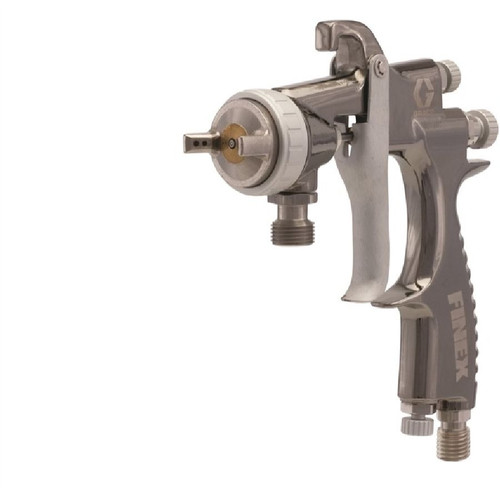

GRACO 289254 - Finex Air Spray Pressure Feed Gun, conventional .055" Needle / Nozzle Size, Aluminum, 100 PSI
High-Low Pressure (HVLP) Finex spray gun designed for precision finishing applications. Part of GRACO's Finex Airspray Package system, this lightweight and compact gun delivers superior atomization and finish quality with reduced overspray compared to conventional spray guns.
Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.
- Aircaps optimized for high quality spray performance
- Lightweight, ergonomic gun
- Lightest trigger pull in its category
- Integrated air inlet adjustment
Additional Specifications
- Max Working Pressure: 7 bar (0.7 MPa, 100 PSI) max fluid working pressure
- Material: Aluminum, SST, Engineered plastic
- Needle Nozzle Size: 0.055" (1.4mm)
- Max Air Inlet Pressure: 7 bar (0.7 MPa, 100 PSI)
- Gun Type: HVLP Finex Gun
- Air Consumption Hvlp: 1.7 bar (0.17 MPa, 24 PSI)
- Sound Pressure Hvlp: 81.96 dB(A) at 1.7 bar
- Nozzle Size Mm: 1.4
- Gun Style: Pressure Feed Conventional
- Needle Nozzle Air Cap Kit: 289308
- Needle Packing Kit: 288891
- Trigger Repair Kit: 24F061
- Operating Temp: -40°F to 109°F (4.4°C to 43°C)
- Air Consumption Finex: 11.0 scfm
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.055 |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 0.8 |
| Gun Weight (oz) | 13.05 |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 109 |
| Maximum Fluid Working Pressure (MPa) | 0.69 |
| Maximum Fluid Working Pressure (psi) | 100 |
| Model | Finex |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Aluminum, Stainless Steel, Engineered Plastic |
Features
- HVLP (High Volume Low Pressure) technology for reduced overspray
- 0.055mm (1.4) precision needle and nozzle size for fine finishing
- Lightweight aluminum, stainless steel and engineered plastic construction
- Low air consumption - only 1.7 bar operating pressure
- Quiet operation - 81.96 dB(A) sound pressure
- Part of complete Finex spray package system
Applications
- Precision finishing applications
- Fine coating work requiring minimal overspray
- Professional spray finishing where HVLP compliance is required
- Applications requiring fine atomization with 0.055mm tip size
- Professional spray finishing
- Industrial coating applications
Compatible Equipment
Related Parts
This HVLP gun is part of GRACO's Finex spray package system designed to be small, lightweight and easy to transport. The 0.055mm needle/nozzle provides fine atomization suitable for precision finishing work. Part of the Finex pressure feed conventional gun family with multiple needle/nozzle size options available This gun is part of the Finex Air Spray system and requires connection to appropriate pump and pressure regulation equipment
