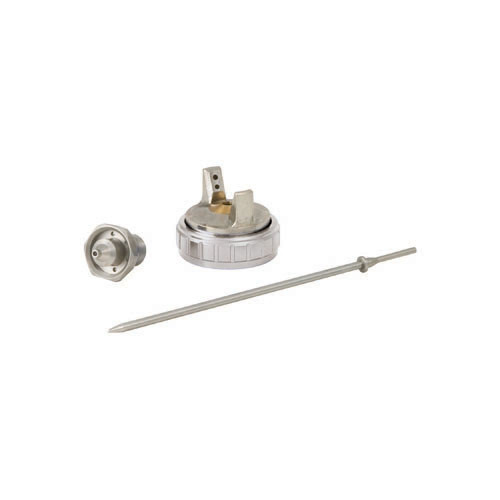

GRACO 289294 - Needle, Nozzle, Air Cap Kit for Finex Standard Gravity Feed Conventional Guns w/ 0.059" Nozzle, 24 PSI

Needle, Nozzle, Air Cap Kit designed for GRACO Finex Standard Gravity Feed Conventional spray guns with 0.059 inch (1.5mm) nozzle size. This precision-engineered kit provides optimal atomization and spray pattern control for conventional gravity feed applications.

Specifications

• Max Working Pressure: 24 PSI (1.7 bar, 0.17 MPa) maximum HVLP inbound air pressure
• Nozzle Size: 0.059 in. (1.5 mm)
• Gun Style: Gravity Feed Standard Conventional
• Needle Packing Kit: 288891
• Gravity Cup Kit: 289322 (600 cc Plastic)
• Pps Adapter: 25R580
• Trigger Repair Kit: 24F061
• Nozzle Diameter: 0.059 (1,5) mm
• Pistol Style: Conventional- Alimentation par gravité standard

Features

• Precision 0.059 inch nozzle for controlled material flow
• Complete needle, nozzle, and air cap assembly
• Designed for conventional gravity feed applications
• Compatible with 600cc plastic gravity cup systems
• Engineered for optimal spray pattern and atomization

Applications

• Conventional gravity feed spray finishing
• Industrial coating applications
• Professional spray finishing work

Compatible Equipment

• GRACO Finex Standard Gravity Feed Conventional spray guns
• Standard Gravity Feed Conventional guns
• Conventional gravity feed standard spray guns

Related Parts

• 289243 - Needle, Nozzle, Air Cap Kit (0.051 inch, 1.3mm)
• 289245 - Needle, Nozzle, Air Cap Kit (0.055 inch, 1.4mm)
• 289246 - Needle, Nozzle, Air Cap Kit (0.071 inch, 1.8mm)
• 289322 - Gravity Cup Kit (600 cc Plastic)
• 288891 - Needle Packing Kit
• 25R580 - PPS Adapter
• 24F061 - Trigger Repair Kit (stainless steel)
• 289291 - Needle, Nozzle, Air Cap Kit for Finex Standard Gravity Feed Conventional Guns w/ 0.039" Nozzle
• 289292 - Needle, Nozzle, Air Cap Kit for Finex Standard Gravity Feed Conventional Guns w/ 0.051" Nozzle
• 289293 - Needle, Nozzle, Air Cap Kit for Finex Standard Gravity Feed Conventional Guns w/ 0.055" Nozzle

Kit Contents

• Parts 1, 2, and 10
• Part 1
• Part 3
• Part 10

Part of the GRACO Gravity Feed Standard Conventional gun system. Maximum air inlet pressure is 100 PSI (7 bar, 0.7 MPa) and maximum fluid working pressure is 100 PSI (7 bar, 0.7 MPa). This is a Needle, Nozzle, Air Cap Kit that includes parts 1, 2, and 10. Other repair kits available for this gun style include Needle Packing Kit (288891), Gun Rebuild Kit (288896), Air Distributor Kit (24C309), and Trigger Repair Kit (24F061). This is a needle, nozzle, and air cap kit for conventional gravity feed standard spray guns with 0.059mm (1.5mm) nozzle diameter. Related kit part numbers include 288891 (tip kit), 288896 (repair kit), 24C309 (air distributor kit), and 24F061 (trigger replacement kit).

Reference Manuals

• 339461 (Page 2)
• 312388 (Page 10)
