GRACO 289297 - Needle, Nozzle, Air Cap Kit for Finex Standard Gravity Feed HVLP Guns w/ .051" Nozzle, 24 PSI

Needle, Nozzle, Air Cap Kit designed for GRACO Finex Gravity Feed Standard HVLP spray guns with 0.051 inch (1.3mm) nozzle opening. This precision-engineered kit provides optimal atomization and spray pattern control for high-volume, low-pressure applications requiring fine finish quality.

Specifications

• Max Working Pressure: 24 PSI (1.7 bar, 0.17 MPa) maximum HVLP inbound air pressure
• Nozzle Size: 0.051 inch (1.3mm)
• Gun Type: Gravity Feed Standard HVLP
• Operating Temp Range: 32-109°F (0-43°C)
• Needle Nozzle Size: 0.051 in. (1.3 mm)
• Kit Includes: parts 1, 2, and 10
• Nozzle Diameter: 0.051 (1.3) mm

Features

• Precision 0.051 inch nozzle for fine atomization
• Complete needle, nozzle, and air cap kit for easy maintenance
• Designed for HVLP (High Volume Low Pressure) operation
• Optimized for gravity feed spray guns
• Engineered for consistent spray patterns

Applications

• Fine finish spray applications
• High-quality coating work
• Automotive refinishing
• Furniture finishing
• Precision spray work requiring fine atomization

Compatible Equipment

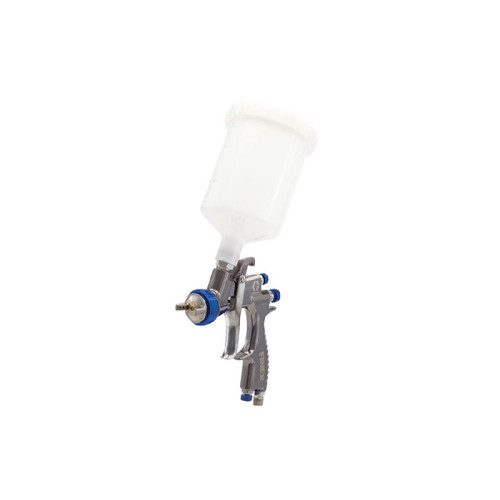

• GRACO Finex Gravity Feed Standard HVLP spray guns
• Standard Gravity Feed HVLP

Related Parts

• 289292 - Needle/Nozzle Air Cap Kit (0.051/1.3)
• 289298 - Needle/Nozzle Air Cap Kit (0.055/1.4)
• 289299 - Needle/Nozzle Air Cap Kit (0.059/1.5)
• 289300 - Needle/Nozzle Air Cap Kit (0.071/1.8)
• 288891 - Needle Packing Kit
• 289322 - Gravity Cup Kit (600 cc Plastic)
• 25R580 - PPS Adapter
• 24F061 - Trigger Repair Kit
• 289296 - Needle, Nozzle, Air Cap Kit for Finex Standard Gravity Feed HVLP Guns w/ .039" Nozzle
• 289298 - Needle, Nozzle, Air Cap Kit for Finex Standard Gravity Feed HVLP Guns w/ .055" Nozzle

Kit Contents

• Needle component
• Nozzle (0.051 inch/1.3mm)
• Air cap
• parts 1, 2, and 10
• piece 1
• piece 2
• piece 10

Part of GRACO's Finex spray gun system. Maximum HVLP inbound air pressure is 24 PSI. Uses needle packing kit 288891 and trigger repair kit 24F061 for maintenance. This is part of the Needle/Nozzle/Air Cap Kit series for Standard Gravity Feed HVLP guns with 0.051 inch (1.3mm) needle/nozzle size. Compatible repair kits include Needle Packing Kit 288891, Gun Rebuild Kit 288896, Air Distributor Kit 24C309, and Trigger Repair Kit 24F061. This is a needle, nozzle, and air cap kit for HVLP standard gravity feed guns with 0.051 (1.3) mm diameter nozzle/tip. Kit includes parts 1, 2 and 10 according to the French description.

Reference Manuals

• 339461 (Page 2)
• 312388 (Page 10)
