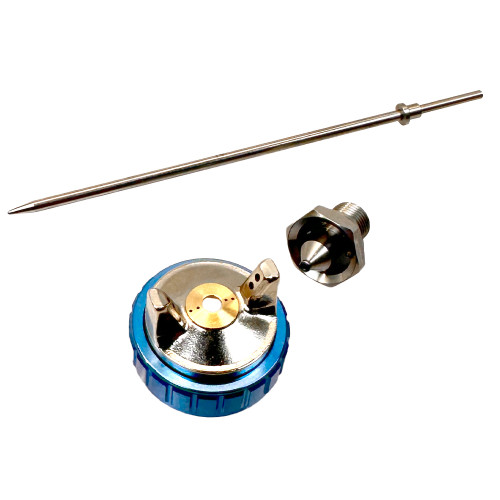

GRACO 289303 - Needle, Nozzle, Air Cap Kit for Finex Pressure Feed HVLP Guns w/ .055" Nozzle, 24 PSI

Needle, Nozzle, Air Cap Kit designed for GRACO Finex Pressure Feed Standard HVLP spray guns with 0.055 inch (1.4mm) needle/nozzle size for precision coating applications requiring high volume low pressure atomization

Specifications

• Max Working Pressure: 24 PSI (1.7 bar, 0.17 MPa) maximum HVLP inbound air pressure
• Needle Nozzle Size: 0.055 inch (1.4mm)
• Gun Compatibility: Pressure Feed Standard HVLP
• Max Fluid Working Pressure: 100 PSI (7 bar, 0.7 MPa)
• Max Inlet Pressure: 100 PSI (7 bar, 0.7 MPa)
• Nozzle Size: 0.055 inch (1.4mm)
• Nozzle Diameter: 0.055 (1,4) mm

Features

• 0.055 inch (1.4mm) needle/nozzle size for medium flow applications
• HVLP (High Volume Low Pressure) technology for efficient transfer efficiency
• Engineered for pressure feed systems
• Complete needle, nozzle, and air cap kit for easy maintenance

Applications

• Pressure feed HVLP spray finishing
• Medium viscosity coatings and materials
• Applications requiring 0.055 inch spray pattern

Compatible Equipment

• GRACO Finex Pressure Feed Standard HVLP Guns
• Pressure Feed HVLP guns
• HVLP alimenté par pression

Related Parts

• 289301 - Needle, Nozzle Air Cap Kit (0.039/1.0)
• 289302 - Needle, Nozzle Air Cap Kit (0.047/1.2)
• 289304 - Needle, Nozzle Air Cap Kit (0.071/1.8)
• 288891 - Needle Packing Kit
• 24F061 - Trigger Repair Kit
• 289301 (0.039/1.0mm)
• 289302 (0.047/1.2mm)
• 289304 (0.071/1.8mm), 289305 (0.031/0.8mm)
• 289306 (0.039/1.0mm)

Kit Contents

• Needle, nozzle, and air cap components (specific part numbers not detailed in this document)
• parts 1, 2, and 10 (specific part numbers not listed in this table)
• piece 1
• piece 2
• piece 10

Part of the Finex HVLP pressure feed gun system. Uses needle packing kit 288891 and trigger repair kit 24F061 for maintenance. This is a needle, nozzle, and air cap kit that includes parts 1, 2, and 10. Compatible needle packing kit is 288891, gun rebuild kit is 288897†, air distributor kit is 24C309, and trigger repair kit is 24F061†. This is a needle, nozzle, air cap kit for HVLP pressure feed spray guns with 0.055mm (1.4) nozzle diameter. Kit includes pieces 1, 2 and 10.

Reference Manuals

• 339461 (Page 2)
• 312388 (Page 10)
