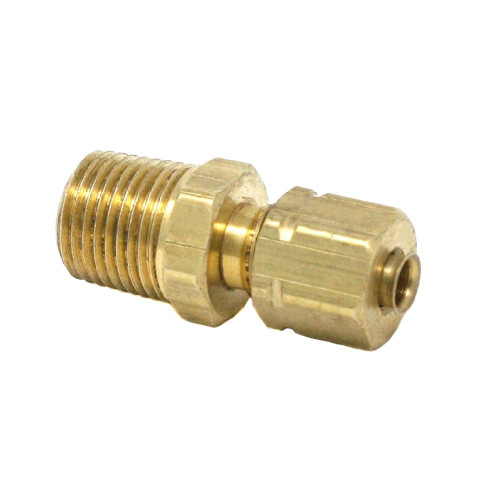

GRACO 558220 - Thrif-T Luber Hardware - TLBF-00 - Bearing Fitting, 1/8 MP X 3/32 Tube

Bearing fitting designed for use in 1/8 NPT bearing tap or manifold to attach 4mm (5/32-in.) tubing in Thrif-T Luber lubrication systems. Essential hardware component for connecting tubing to bearing lubrication points.

Specifications

• Thread: 1/8 NPT
• Tube Size: 4mm (5/32-in.)
• Connection Type: 1/8 NPT bearing tap or manifold

Features

• Part of Thrif-T Luber Hardware system
• Bearing fitting design for reliable connections
• Compatible with single line resistive orifice systems
• Designed for 1/8 NPT bearing tap or manifold connection
• Accepts 4mm (5/32-in.) tubing
• Part of Thrif-T Luber accessory system

Applications

• Single line resistive orifice lubrication systems
• Bearing lubrication
• Industrial lubrication applications
• Bearing lubrication systems
• Low-pressure orifice lubrication
• Manifold to tubing connections

Compatible Equipment

• Thrif-T Luber Orifices (TLOA and TLOB series)
• Single Line Parallel systems
• Injecto-Flo II Single Point Piston Distributors
• Thrif-T Luber LTL-400 system
• 1/8 NPT bearing taps
• Lubrication manifolds

Related Parts

• 561217 - TLMB-04, 4-Port Manifold Bar
• 561218 - TLMB-06, 6-Port Manifold Bar
• 561219 - TLMB-08, 8-Port Manifold Bar
• 561220 - TLMB-10, 10-Port Manifold Bar
• 561215 - TLTF-00, Tee
• 561216 - TLAB-00, Anchor Block
• 558190 - TLIF-00, Inverted Flare
• 558189 - TLCN-00, Compression Nut
• 558296 - Pressure Gauge, TLPG-00
• 558156 - Tube Clip, TLTC-01

Part of comprehensive Thrif-T Luber system with various orifice options and manifold configurations available Old part number was 464-100-100. This is a critical connection component for bearing lubrication applications in the Thrif-T Luber system.

Reference Manuals

• 339427 (Page 16)
• LTL400EN-A (Page 9)
