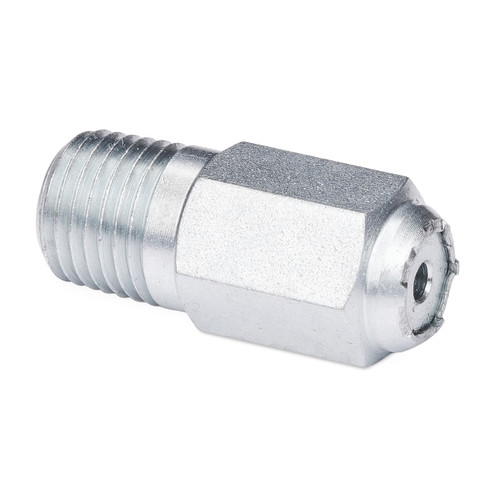

GRACO 563166 - Valve Relief 1/8 NPT 1500 PSI, 1/8 NPTF

Automatic Relief Indicator that pinpoints lube line blockage while allowing the lube system to continue supplying lubrication to points that are not blocked. Used primarily in secondary divider valves, the excessive pressure created by line blockage moves a piston, enabling the lubricant to escape through a vent. When the blockage is removed, the spring resets the piston, allowing the lube system to keep operating when a lube point is blocked.

Specifications

• Length: 1.37 (34.9)
• Thread: 1/8 NPTF
• Max Working Pressure: 103 bar
• Material: Carbon Steel
• Diameter: 0.50 (12.7)
• Connection Type: MJ, MH, MSP, MXP
• Color: Red
• Pressure Mpa: 10 MPa
• Pressure Bar: 103 bar
• Tolerance: ± 20%

Features

• Automatic relief indication
• Visual system monitoring
• Designed for high-pressure applications
• Pinpoints lube line blockage
• Allows lube system to continue operating when one point is blocked
• Spring-loaded piston automatically resets when blockage is cleared

Applications

• MJ series equipment
• MS series equipment
• MH series equipment
• MXP series equipment
• Secondary divider valves
• Lubrication systems where line blockage detection is critical

Compatible Equipment

• MJ series
• MS series
• MH series
• MXP series
• MJ or MR (508-310-XXX) divider valves (no O-ring)
• MJ systems

Related Parts

• 563163 - Valve Relief 1/8 NPT 750 PSI, 1/8 NPTF
• 563164 - Valve Relief 1/8 NPT 1000 PSI, 1/8 NPTF
• 563167 - Valve Relief 1/8 NPT 2000 PSI, 1/8 NPTF
• 563168 - Relief Valve, 1/8" NPT 2500 PSI, 1/8" NPTF
• 563169 - Relief Valve, 1/8 NPT 3000 PSI, 1/8 NPTF
• 563163 (750 PSI, Blue)
• 563164 (1000 PSI, Green), 563165 (1250 PSI, Yellow)
• 563167 (2000 PSI, Orange)

Part of automatic relief indicator family with pressure ratings from 52 bar to 207 bar Separate pressure switch connected to audible or visual alarm should be used to warn of high pressure. If replacing indicators with pressure ratings no longer available, select available indicators with next higher pressure rating. This is an automatic relief indicator that pinpoints lube line blockage but allows the lube system to continue supplying lubricant to points that are not blocked. Used primarily in secondary divider valves. The excessive pressure created by line blockage moves a piston, enabling the lubricant to escape through a vent. When pressure is relieved the spring resets the piston. Color provided for service and in selection of replacement indicator. Indicators used to be identified by the color of the spring retainer located in the end of the indicator.

Reference Manuals

• 339427 (Page 22)
• L15401EN-C (Page 2)
• 312497 (Page 39) Trabon Divider Valves .
