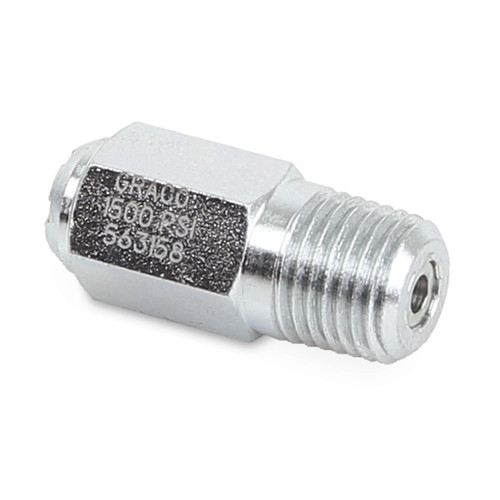

GRACO 563188 - Relief Valve, 1/4 2350 PSI, Aluminum, 1/4"-18 NPTF

Complete rupture-to-atmosphere indicator assembly designed to provide visual warning when high system pressure line has occurred. Features a spud assembly with female thread for returning vented lubricant oil to reservoir via tube connection. Includes high pressure switch and/or cycle switch capability for audible or visual warning alarms.

Trabon Performance Indicators are pressure-sensitive devices that pinpoint excessive pressure in Trabon series progressive lubricating systems. These devices, which are installed in the alternate outlet ports of divider valves, signal a fault either by causing an indicator pin to protrude or by releasing lubricant to the atmosphere. All Performance Indicators respond quickly to protect the lube system and locate lube line blockage.

Rupture-to-Atmosphere Indicators for use with MX Divider Valves. A spud assembly is available to return vented lubricant to the reservoir by way of a tube.

• Used in conjunction with system pressure switch–can warn of a fault while allowing lube system to continue to deliver to critical bearings.
• Requires replacement of the rupture disc to restart the lube system.
• Easy information on blocked lines, high system pressure or blocked bearings.

Additional Specifications

• Thread: 1/4"-18 NPTF
• Max Working Pressure: 162 bar
• Material: Aluminum
• Includes Spud Assembly: yes
• Disc Diameter: 11/16 inch
• Tightening Torque: 5 FT-LBS
• Disc Color: Aluminum
• Replacement Part: 557436
• Tolerance: + 500 PSI (3.4 MPa, 34.5 bar)

Features

• Rupture-to-atmosphere design
• Includes spud assembly
• High pressure rating of 162 bar
• NPTF threading for secure connection
• Spud assembly with female thread for tube connection
• Returns vented lubricant oil to reservoir

Applications

• High pressure fluid systems
• Safety pressure monitoring
• Industrial spray equipment
• Pressure relief applications
• Centralized lubrication systems
• High pressure monitoring applications

Compatible Equipment

• MJ, MS, MH and MXP series equipment
• GRACO centralized lubrication systems
• Oil and grease lubrication systems
• High pressure pumping systems
• GRACO pumps

Related Parts

• 563186 - Valve, Relief, 1/4 1450 PSI
• 563179 - Rupture-to-Atmosphere Indicators for MX Divider Valves - 1450 PSI, 1/4 inch-18" NPT(F) - Oil
• 563182 - Rupture-to-Atmosphere Indicators for MX Divider Valves - 1750 PSI, 1/4 inch-18" NPT(F)
• 563184 - Rupture-to-Atmosphere Indicators for MX Divider Valves - 2350 PSI, 1/4 inch-18" NPT(F) - Grease
• 563185 - Rupture-to-Atmosphere Indicators for MX Divider Valves - 2950 PSI, 1/4 inch-18" NPT(F)
• 563186 - 1450 PSI Yellow disc assembly (509-220-101)
• 563187 - 1750 PSI Red disc assembly (509-220-121)
• 557433 - 1450 PSI replacement disc (509-292-000)

Kit Contents

• 563188 - Complete Assembly (509-220-161)
• 557436 - Replacement Disc (509-295-000)

Part of the rupture-to-atmosphere indicator family with spud assembly, specifically designed for 1/4"-18 NPTF connections Part of GRACO's comprehensive centralized lubrication system product line. All pressures have a tolerance of ±500 PSI. Replacement discs are available individually or in packaged quantities. This is a complete assembly that includes a Spud Assembly to return vented lubricant to the reservoir by way of a tube. A high pressure switch provides an audible or visual warning alarm that height system pressure has occurred. Standard on all GRACO pumps - ruptures when pressure reaches predetermined setting, venting lubricant into atmosphere and relieving pressure.

Reference Manuals

• 339427 (Page 22)
• L15401EN-C (Page 4)
• 312497 (Page 40)
