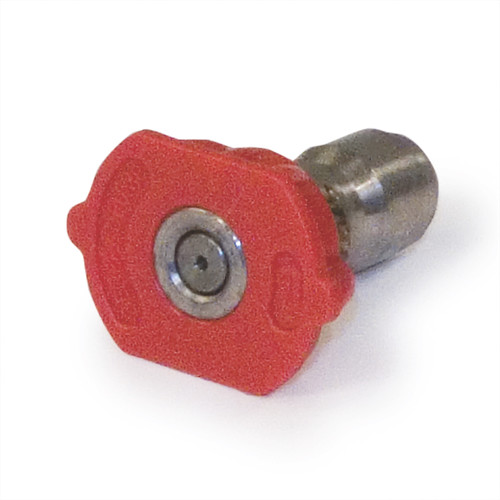

GRACO 805551 - Washer Spray Tip, 0005, 4000 PSI

GRACO 805551 is a 0 degree red cutting tip designed for concentrated cleaning power. This tip delivers a concentrated stream that can gouge or cut through tough materials, making it ideal for removing stains from concrete or other hard surfaces. The 0 degree angle provides maximum impact for heavy-duty cleaning applications.

Maximize your cleaning power by selecting the tip that best matches the maximum pressure and flow of your pressure washer. For lower pressure spraying, choose a larger size tip to maximize your flow and cleaning power.

Tips include filter with quick connect and offer heavy-duty components for long life and reliability. Can be used on sidewalks, driveways, track vehicles, muddy areas, old peeling paints and concrete surfaces.

• 40 degree Washing Tip

  • Wide spray for washing or rinsing a large area.
  • Washing vehicles, windows, aluminum siding and other delicate surfaces.

Additional Specifications

• Flow Rate: varies by pressure - 5.5 GPM at 1500 PSI, 5.5 GPM at 2000 PSI, 5.0 GPM at 2500 PSI, 4.5 GPM at 3000 PSI, 4.5 GPM at 3500 PSI, 4.0 GPM at 4000 PSI
• Max Working Pressure: up to 4000 PSI
• Gauge: 5.0
• Orifice Size: 5.0
• Part Family: GRACO G-Force II

Color	Red
Connection Size (in)	0.25
Connection Type	Quick Disconnect
For Use With	AquaMax, G-Force, G-Force II, Hydra-Clean
Material	Stainless Steel
Maximum Working Pressure (psi)	5000
Model	G-Force II
Nominal Size	5
Orifice Diameter (in)	0.053
Series	Washer Spray Tip
Tip Angle (°)	0
Type	Pressure Washer Sprayer Tip

Features

• 0° spray angle for maximum pressure concentration
• Precision orifice for consistent spray pattern
• Professional-grade construction for durability
• Compatible with G-Force pressure washers
• 0 degree cutting tip for maximum impact
• Red color coding for easy identification

Applications

• Heavy-duty cleaning applications
• Removing stubborn dirt and grime
• Surface preparation
• Industrial cleaning tasks
• Removing stains from concrete
• Hard surface cleaning

Compatible Equipment

• G-Force II pressure washers
• Professional pressure washing equipment
• Pressure washers up to 4000 PSI
• GRACO G-Force II tip systems

Related Parts

• 805535 - Washer Spray Tip, 0003
• 805536 - Washer Spray Tip, 1503, 3.0 Orifice, Up to 5000 PSI
• 805537 - Washer Spray Tip, 2503
• 805538 - Washer Spray Tip, 4003
• 805539 - Washer Spray Tip, 00035
• 805540 - Washer Spray Tip, 15035

Part of GRACO's comprehensive tip system offering various spray angles (0°, 15°, 25°, 40°) and orifice sizes for different cleaning applications This is a cutting tip that works like a scraper when used at a 40° angle. Part of the rotating and oscillating tip family that can be used on sidewalks, driveways, trucks, vehicles, muddy areas, old peeling paints and concrete surfaces. This is a 0 degree red cutting tip with 5.0 orifice size. The concentrated stream delivers maximum pressure for cutting and tough cleaning jobs. Flow rate decreases as pressure increases to maintain optimal performance.

Reference Manuals

• 320582 (Page 4)
• 338781 (Page 8)
• 344379 (Page 8)
• 308514 (Page 2)
