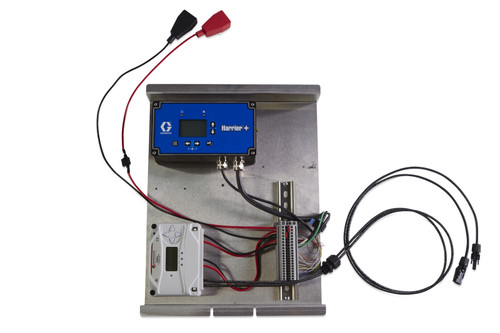

GRACO B52417 - Four-Battery Control Box w/ Harrier+ SCADA Controller, includes Prostar 30 One Panel Charge Controller
Four-battery control box with Harrier+ SCADA controller and Prostar 30 charge controller (12/24 VDC, one panel). This control box provides advanced monitoring and control capabilities for chemical injection applications requiring extended battery backup and remote connectivity.
When specifying the correct chemical injection system, it’s important to ensure the correct control box configuration is used to ensure proper operation. Graco offers plastic or steel boxes, AC and DC powered, plus standard options all the way up to NEMA-rated box options to help meet the chemical injection application requirements. The Modular Control Boxes are customizable so the correct configuration can be achieved based on your application needs.
- Removable sub-plate for easy battery access and ease of serviceability
- Keeps electric components and battery separate
- Sub-plates are configurable with all controller and charge controller options
- On/Off switch
Additional Specifications
- Battery Configuration: Four-battery back panel
- Solar Panels: One panel
- Power Type: VDC powered
- Communication: Harrier+ SCADA
- Battery Capacity: Four-battery configuration
| Includes | Harrier+ SCADA Controller, Prostar 30 Charge Controller |
| Type | Four-Battery Control Box |
| Voltage (V dc) | 12, 24 |
Features
- Harrier+ SCADA controller for remote monitoring and control
- Prostar 30 charge controller for solar panel management
- Four-battery back panel configuration for extended runtime
- 12/24 VDC operation for versatile power requirements
- Single solar panel operation
- Modular control box design
Applications
- Chemical injection systems
- Remote monitoring applications
- Solar-powered control systems
- Industrial automation with SCADA requirements
- Chemical injection applications
- Remote monitoring installations
Compatible Equipment
- Prostar 30 charge controller systems
- 12/24 VDC pump controllers
- Single solar panel installations
- Chemical injection pumps
- Solar panel charging systems
- Remote monitoring systems
Related Parts
Part of the Four-Battery Back Panel Options series. Selection depends on box type, voltage, pump controller, charge controller and number of solar panels required for the chemical injection application. Part of comprehensive control box family with various controller and battery configurations available. Selection depends on box type, voltage, pump controller, charge controller and solar panel requirements.
