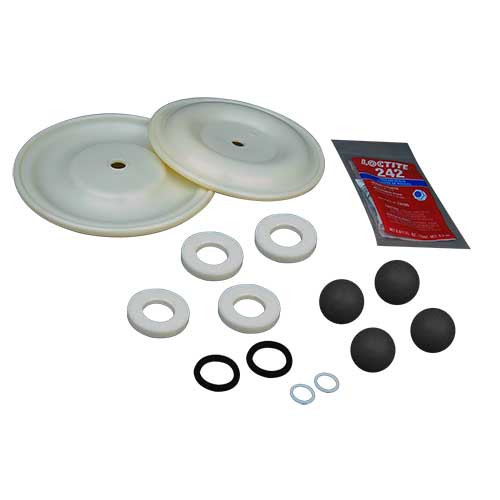

GRACO D07525 - Fluid Section Repair Kit for 1040 Husky Diaphragm Pump, TPE diaphragms

GRACO D07525 - Fluid Section Repair Kit for 1040 Husky Diaphragm Pump, TPE diaphragms

Item #: D07525

Price: with strikethrough $402.00

Retail Price:

Sale Price: Price $340.90

QTY:

Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Item Description
GRACO D07525 - Fluid Section Repair Kit for 1040 Husky Diaphragm Pump, TPE diaphragms

This fluid section repair kit is designed for use with the 1040 Husky 1" diaphragm pumps (Models:236265 and 236267)
Includes:
Additional Specifications
- Material: TPE diaphragms and seats, acetal balls
Part No. Description Qty
112254 BALL; acetal 4
188711 SEAT, ball; TPE 4
112181 PACKING, u-cup; nitrile 2
104319 O-RING; PTFE 2
188606 DIAPHRAGM; TPE 2

Compatible Equipment
- Model 236265 Husky 1040 pumps
- Model 236267 Husky 1040 pumps
Related Parts
- 236273 - Air Valve Repair Kit
- 23B428 - Pressure Relief Kit
Kit Contents
- 112254 - BALL; acetal (Qty: 4)
- 188711 - SEAT, ball; TPE (Qty: 4)
- 112181 - PACKING, u-cup; nitrile (Qty: 2)
- 104319 - O-RING; PTFE (Qty: 2)
- 188606 - DIAPHRAGM; TPE (Qty: 2)
Use Only Genuine GRACO Parts and Accessories

Reference Manuals
- 308326 (Page 28)
Specifications
GRACO D07525 - Fluid Section Repair Kit for 1040 Husky Diaphragm Pump, TPE diaphragms

This fluid section repair kit is designed for use with the 1040 Husky 1" diaphragm pumps (Models:236265 and 236267)
Includes:
Additional Specifications
- Material: TPE diaphragms and seats, acetal balls
Part No. Description Qty
112254 BALL; acetal 4
188711 SEAT, ball; TPE 4
112181 PACKING, u-cup; nitrile 2
104319 O-RING; PTFE 2
188606 DIAPHRAGM; TPE 2

Compatible Equipment
- Model 236265 Husky 1040 pumps
- Model 236267 Husky 1040 pumps
Related Parts
- 236273 - Air Valve Repair Kit
- 23B428 - Pressure Relief Kit
Kit Contents
- 112254 - BALL; acetal (Qty: 4)
- 188711 - SEAT, ball; TPE (Qty: 4)
- 112181 - PACKING, u-cup; nitrile (Qty: 2)
- 104319 - O-RING; PTFE (Qty: 2)
- 188606 - DIAPHRAGM; TPE (Qty: 2)
Use Only Genuine GRACO Parts and Accessories

Reference Manuals
- 308326 (Page 28)
