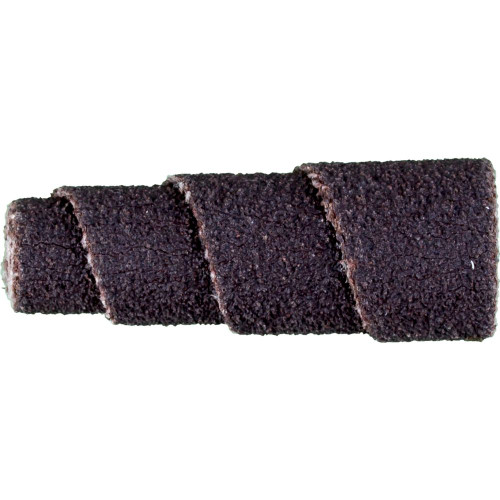

PFERD 41803 3/8" x 1" Cartridge Roll, 1/8" AH Full Taper, Aluminum Oxide 120 Grit
PFERD offers a wide range of coated and non-woven abrasive tools for face-down grinding, belt grinding, peripheral grinding, surface conditioning, polishing, and much more.
POLIROLL cartridge rolls are suited for work in hard-to-reach places. They consist of spirally wound coated abrasives. The abrasive grain is embedded in the resinoid coating on the sturdy backing material, which achieves the best possible abrasive performance.
For universal grinding work on metals and other materials.
Materials that can be worked:| Annealed cast iron | Hard non-ferrous metal | Steel, cast steel |
| Brass | Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC) | Steels up to 1,200 N/mm² (< 38 HRC) |
| Cast steel | Other non-ferrous metals | Thermoplastics |
| Copper | Soft non-ferrous metal | Titanium |
| Fibre-reinforced duroplastics (GRP, CRP) | Stainless steel (INOX) | |
| Grey/nodular cast iron (GG/GJL, GGG/GJS) | Steel materials with a hardness over 54 HRC | |
Applications:- Weld dressing
- Deburring
- Work on edges
- Sharpening
- Fine grinding in multiple steps
Drive types:- Flexible shaft drive
- Straight grinder
Specifications:
| Diameter | 3/8 |
| Height | 1 |
| Grit size | 120 |
| Recom. RPM from | 16000 RPM |
| Suitable arbors | EDP 42060 |
| Packing unit | 50 pcs. |
| EDP number | 41803 |
