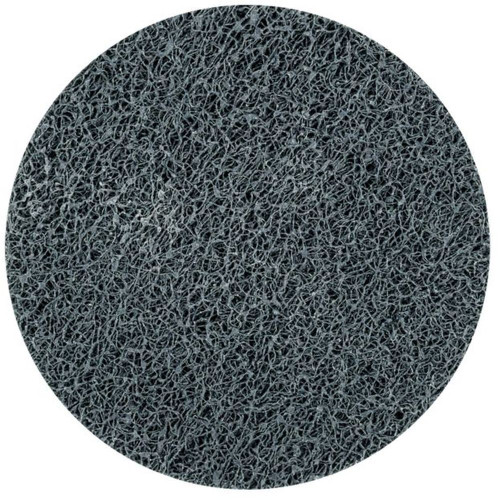

PFERD 48430 2" Unitized COMBIDISC Type CD, SiC Fine (W) 2SF
PFERD offers a wide range of coated and non-woven abrasive tools for face-down grinding, belt grinding, peripheral grinding, surface conditioning, polishing, and much more.
For achieving a very fine, uniform surface finish which, depending on requirements, is a sufficient preparation for high-gloss polishing. Ideal for work on small and medium-sized surfaces of stainless steel (INOX) components. The different thicknesses/hardnesses of the non-woven material are colour-coded: W (soft) = grey, MH (medium-hard) = dark blue, H (hard) = redMaterials that can be worked:| Aluminium | Hard non-ferrous metal | Steel materials with a hardness over 54 HRC |
| Brass | Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC) | Steel, cast steel |
| Bronze | High-temperature-resistant materials | Steels up to 1,200 N/mm² (< 38 HRC) |
| Cast steel | Nickel-based alloys (e. g. Inconell and Hasteloy) | Thermoplastics |
| Cobalt-based alloys | Other non-ferrous metals | Titanium |
| Copper | Soft non-ferrous metal | Titanium alloys |
| Fibre-reinforced duroplastics (GRP, CRP) | Stainless steel (INOX) | |
Applications:- Roughening
- Deburring
- Surface work
- Cleaning
- Weld dressing
- Structuring (matt finishing, brush matting and satin finishing)
- Fine grinding in multiple steps
Drive types:- Cordless angle grinder
- Angle grinder
- Flexible shaft drive
- Straight grinder
Specifications:
| Diameter | 2 |
| Grit size | fine |
| Recom. RPM from | 9500 RPM |
| Max. RPM | 19100 RPM |
| Abrasive | SiC |
| Density | soft |
| Packing unit | 25 pcs. |
| EDP number | 48430 |
