Reelcraft 5635-OLPSW5 - 3/8" x 35 ft. 250 psi, Water with Hose

Item #: 5635-OLPSW5

MSRP: Price: $557.47

Price: with strikethrough $627.00

Retail Price:

Sale Price: Price $517.65

(You save $39.82 )

QTY:

Most orders over $299
ship for free | See Details

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

Essential Accessories

Reelcraft 5635-OLPSW5 - 3/8" x 35 ft. 250 psi, Water with Hose

Reelcraft Series 5000 pre-rinse hose reels are durable and compact for a wide range of applications with critical space requirements.

Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
Low-pressure 3/8 in. x 35 ft. rubber hose included; rated for hot water up to 180 °F (82 °C)
A lever-operated spray valve is included (S600080)
Optional 360° rotating swivel (600248) offers 20° of angular motion
Push-Lok®, field replaceable, hose end fittings
Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel
The reliable speed latch allows for positive locking of the spool in two positions per rotation
Individually powder-coated steel components provide maximum protection from premature corrosion
Robotically welded steel base offers maximum strength and consistent quality
Guide arm adjusts to two positions
Made in the USA

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

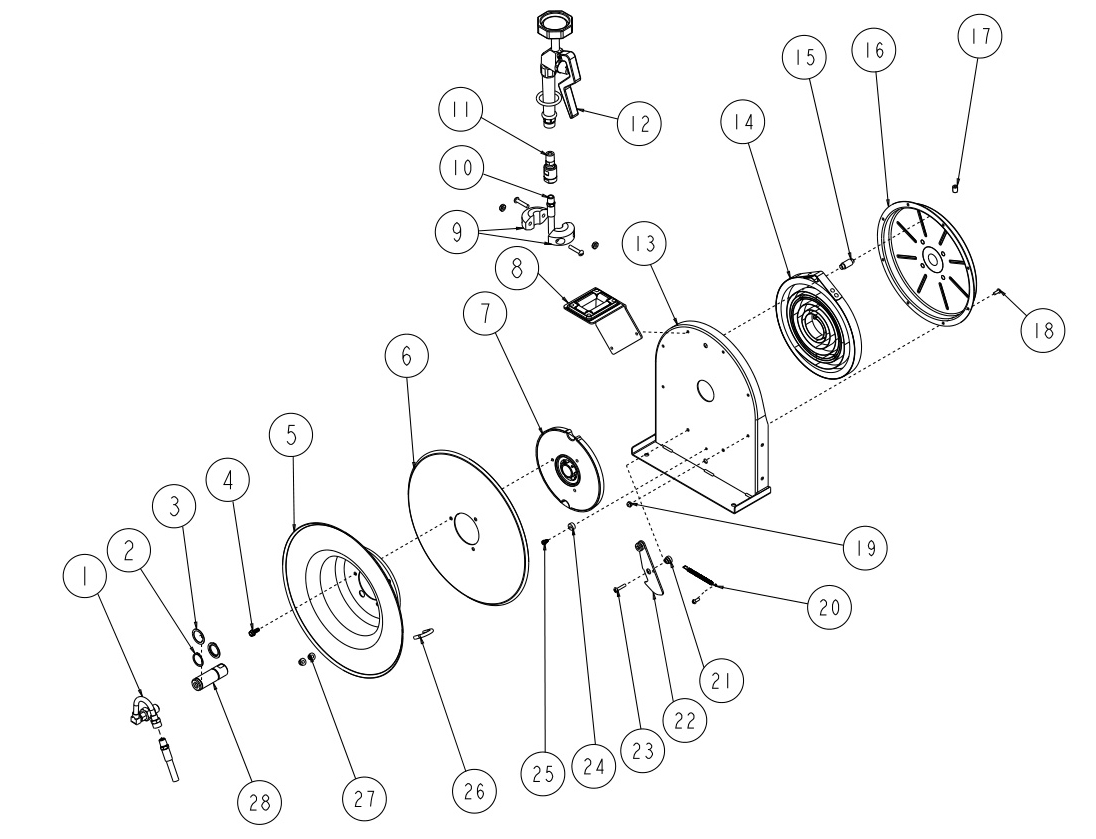

5635-OLPSW5 Parts List (27 Items) ▼

Item #	# Req.	Part Number	Description
1	1	S600886	Swivel Assembly
2	1	300031	1" Snap Ring
3	2	300034	Spacing Washer
4	3	S295-102	1/4" Hex Screw
5	1	260022	Sheave Flange
6	1	500006	Sheave Disk
7	1	S263382	Ratchet Arbor
8	1	S500107	Guide Arm & Roller Assembly
9	1	1-HR1004	Bumper Stop Assembly
10	1	601052-35	Hose Assembly
12	1	S600080	Spray Valve
13	1	500101	Base Assembly
14	1	S504240	Drive Spring Assembly
15	1	S261360	Spring Case Stud
16	1	S500103	Spring Case Assembly
17	1	300006	3/8 x 1/2" Set Screw
18	7	300002	10-32 x 1/2" Machine Screw
19	8	S82-15	10-32 x 3/8" Nyloc Nut
20	1	S400018	Latch Spring
21	1	S400012	Latch Bushing
22	1	S400109	Latch Plate Assembly
23	1	300035	10-32 x 1" Machine Screw
24	1	S400021	Latch Bumper
25	1	S32-136	10-24 x 3/8" Self Tapping Screw
26	1	S3-117440	U-bolt
27	2	261650-1	1/4-20 Zinc Nyloc Nut
28	1	S400015	Main Shaft
