Reelcraft GC7535-OLP - 5/8" x 35 ft. 200 psi, Garden Series Spring Retractable Hose Reel

GC7535 OLP – 5/8 in. x 35 ft. Heavy Duty Garden Hose Reel

Reelcraft GC7535-OLP - 5/8" x 35 ft. 200 psi, Garden Series Spring Retractable Hose Reel

Item #: GC7535-OLP

MSRP: Price: $763.43

Price: with strikethrough $856.00

Retail Price:

Sale Price: Price $708.90

(You save $54.53 )

QTY:

In Stock – Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description

Reelcraft GC7535-OLP 5/8" x 35' Spring Retractable Heavy Duty Water Hose Reel

Reelcraft's garden hose reels are designed to be mounted centrally and used for watering and washdown. They offer longer lengths of larger I.D. hose, are spring driven, and come equipped with garden hose end fittings (designated by an NH). Model includes hose, bumper and inlet hose (S600982-10), providing a reel solution out of the box.

Features:

Long spring life – Spring is made from high quality spring steel and conditioned to remove imperfections.

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

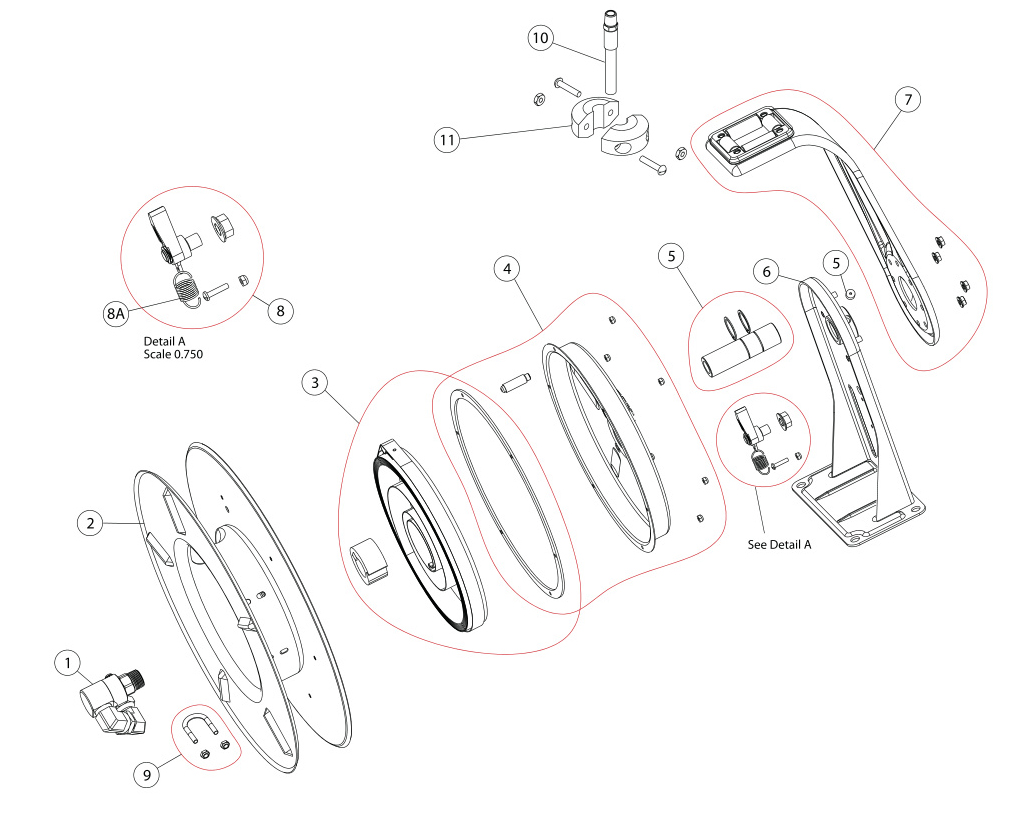

GC7535-OLP Parts List (14 Items) ▼

Item #	# Req.	Part Number	Description
1	1	S600242	Swivel Kit
2	1	S260011	Sheave Kit
3	1	S600023	Drive Spring Gasket & Arbor Kit
4	1	S260074	Spring Cover Kit
5	1	S602231-1	Shaft Kit
6	1	S602842	Base Assembly
7	1	S600017	Guide Arm Kit
8	1	S602299	Latch Kit
8A	1	S260067	Latch Spring
9	1	S5-117440	U-Bolt Kit
10	1	601046-35	Hose Assembly
11	1	S600838	Bumper Assembly
---	1	S261447	Garden Hose Valve
---	1	S600830-10	Inlet Hose

Specifications:

Weight	55 lbs
Series	7000
Hose I.D.	5/8"
Hose O.D.	0.810"
Hose Length	35'
Pressure	200 psi
Hose End	3/4" NH(M)
Inlet	3/4" NH(F)
Reel Outlet	3/4" NPT(F)
Hose Included	Yes
Max Temperature	150 °F
UPC	699567008750

Specifications

Reelcraft GC7535-OLP 5/8" x 35' Spring Retractable Heavy Duty Water Hose Reel

Features:

Long spring life – Spring is made from high quality spring steel and conditioned to remove imperfections.

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

GC7535-OLP Parts List (14 Items) ▼

Item #	# Req.	Part Number	Description
1	1	S600242	Swivel Kit
2	1	S260011	Sheave Kit
3	1	S600023	Drive Spring Gasket & Arbor Kit
4	1	S260074	Spring Cover Kit
5	1	S602231-1	Shaft Kit
6	1	S602842	Base Assembly
7	1	S600017	Guide Arm Kit
8	1	S602299	Latch Kit
8A	1	S260067	Latch Spring
9	1	S5-117440	U-Bolt Kit
10	1	601046-35	Hose Assembly
11	1	S600838	Bumper Assembly
---	1	S261447	Garden Hose Valve
---	1	S600830-10	Inlet Hose

Specifications:

Weight	55 lbs
Series	7000
Hose I.D.	5/8"
Hose O.D.	0.810"
Hose Length	35'
Pressure	200 psi
Hose End	3/4" NH(M)
Inlet	3/4" NH(F)
Reel Outlet	3/4" NPT(F)
Hose Included	Yes
Max Temperature	150 °F
UPC	699567008750
