Reelcraft HD76075-OHP 3/8 x 75' High Pressure Grease Hose Reel 4800psi
Reelcraft's new Series HD70000 hose reels incorporate a heavy duty base design, all steel construction and a baked-on powder coat finish to produce a rugged, corrosion-resistant product. A newly redesigned latching mechanism provides longer service life of the latch components. The one-piece guide roller design and stainless steel pins offer greater strength and easier serviceability. The high quality, die cast aluminum hub and two sealed ball bearings produce a smoother spool rotation and easier operation.
Features:
*Reel is shipped in the top wind position. The reel image is shown in side wind position.
Specifications:
HD76075-OHP

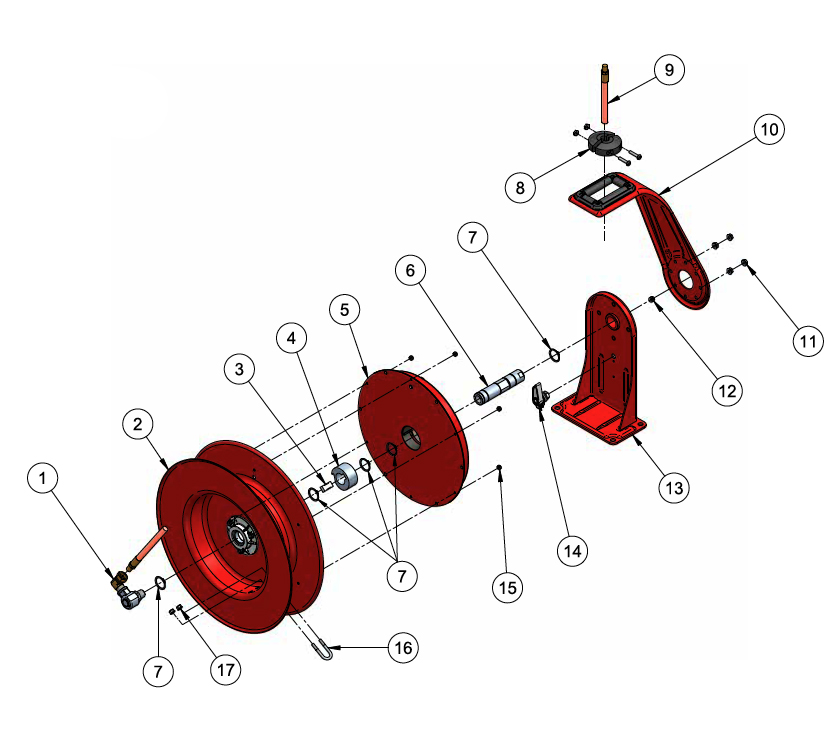

Parts List (17 Items)
▼
Item #
# Req.
Part Number
Description
1 1 S602110-1 Swivel & Ell Assembly 2 1 602704 Spool & Hub Assembly 5 1 602720-100 Containerized Drive Spring 6 1 262948 Main Shaft 7 5 300007 Snap Ring 8 1 602452 Bumper Stop Assembly 9 1 16-260044 Hose Assembly 10 1 602697 Guide Arm & Roller Assembly 16 1 3-117440 U-Bolt Kit - 1 261274 Spring Arbor - 1 261275 Arbor Key - 2 261650-1 Hex Flange Lock Nut 1/4-20 - 4 300107 Lock Nut 5/16-18 - 1 602686 Base Assembly - 1 S35-84 Set Screw 1/2-13 - 1 S602694 Latch Pawl Assembly - 6 S82-15 Nyloc Nut 10-32
| Weight | 90 lbs |
| Series | HD70000 |
| Hose I.D. | 3/8" |
| Hose O.D. | 0.730" |
| Hose Length | 75' |
| Pressure | 4800 psi |
| Hose End | 1/4" NPT(M) |
| Inlet | 1/2" NPT(F) |
| Reel Outlet | 3/8" NPT(F) |
| Hose Included | Yes |
| Max Temperature | 210 °F |
| UPC | 699567017936 |
Reelcraft HD76075-OHP 3/8 x 75' High Pressure Grease Hose Reel 4800psi
Reelcraft's new Series HD70000 hose reels incorporate a heavy duty base design, all steel construction and a baked-on powder coat finish to produce a rugged, corrosion-resistant product. A newly redesigned latching mechanism provides longer service life of the latch components. The one-piece guide roller design and stainless steel pins offer greater strength and easier serviceability. The high quality, die cast aluminum hub and two sealed ball bearings produce a smoother spool rotation and easier operation.
Features:
*Reel is shipped in the top wind position. The reel image is shown in side wind position.
Specifications:
HD76075-OHP
Parts List (17 Items)
▼
Item #
# Req.
Part Number
Description
1 1 S602110-1 Swivel & Ell Assembly 2 1 602704 Spool & Hub Assembly 5 1 602720-100 Containerized Drive Spring 6 1 262948 Main Shaft 7 5 300007 Snap Ring 8 1 602452 Bumper Stop Assembly 9 1 16-260044 Hose Assembly 10 1 602697 Guide Arm & Roller Assembly 16 1 3-117440 U-Bolt Kit - 1 261274 Spring Arbor - 1 261275 Arbor Key - 2 261650-1 Hex Flange Lock Nut 1/4-20 - 4 300107 Lock Nut 5/16-18 - 1 602686 Base Assembly - 1 S35-84 Set Screw 1/2-13 - 1 S602694 Latch Pawl Assembly - 6 S82-15 Nyloc Nut 10-32
| Weight | 90 lbs |
| Series | HD70000 |
| Hose I.D. | 3/8" |
| Hose O.D. | 0.730" |
| Hose Length | 75' |
| Pressure | 4800 psi |
| Hose End | 1/4" NPT(M) |
| Inlet | 1/2" NPT(F) |
| Reel Outlet | 3/8" NPT(F) |
| Hose Included | Yes |
| Max Temperature | 210 °F |
| UPC | 699567017936 |
