Item #: SWHD76100-OLPT
Price: with strikethrough $1,095.00
Retail Price:
Sale Price: Price $815.00
Call 888-654-8898
Need this Product for a Specific Application?

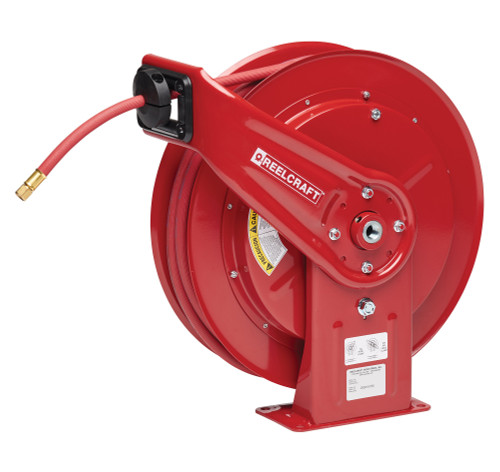

Use our handy finder to find the exact model for your needs.Reelcraft SWHD76100 OLPT - 3/8" x 100 ft. Single Line Welding Hose Reel T-Grade
The new Reelcraft Series SW single line hose reel expands the industry-leading welding series and is specifically designed to improve work area safety and increase efficiency and productivity when transferring fuel gases.
Reel
Hose
*Reel is shipped in the top wind position. The reel image is shown in the side wind position.

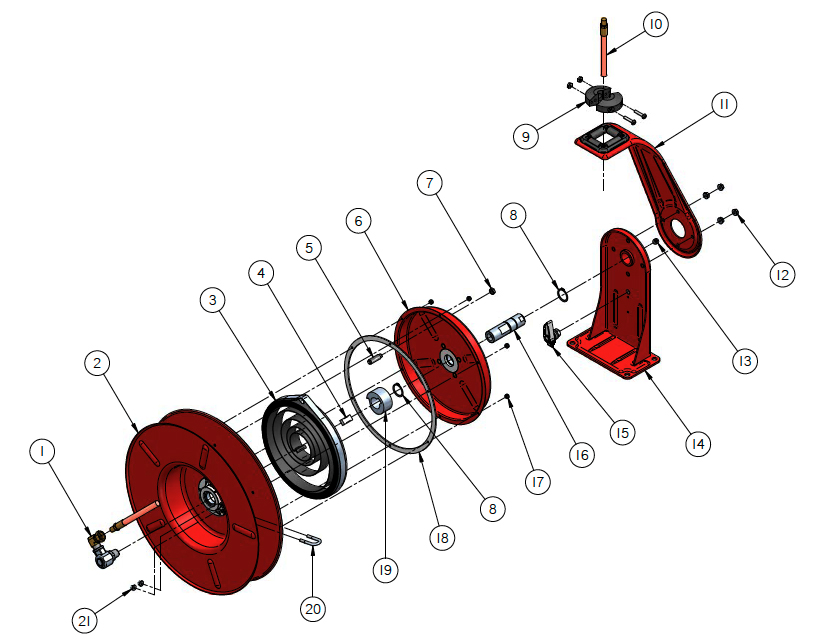

| Item # | # Req. | Part Number | Description |
|---|---|---|---|
| 1 | 1 | 602844-1 | Swivel Assembly |
| 2 | 1 | 602704 | Spool & Hub Assembly |
| 4 | 1 | 600621 | Spring Arbor Kit |
| 6 | 1 | 602697 | Guide Arm & Roller Assembly |
| 8 | 2 | 300007 | Snap Ring |
| 9 | 1 | 1-HR1004-3 | Bumper Stop Assembly |
| 10 | 1 | 602263-100 | Hose Assembly |
| 11 | 1 | 602697 | Guide Arm & Roller Assembly |
| 12 | 4 | 300107 | Lock Nut 5/16-18 |
| 13 | 1 | S35-84 | Set Screw 1/2-13 |
| 14 | 1 | 602686 | Base Assembly |
| 15 | 1 | 602694 | Latch Pawl Assembly |
| 16 | 1 | 262948 | Main Shaft |
| 17 | 6 | S82-15 | Nyloc Nut 10-32 |
| 20 | 1 | 3-117440 | U-Bolt Kit |
| 21 | 2 | 261650-1 | Hex Flange Lock Nut 1/4-20 |
Specifications:
| Weight | 75 lbs |
| Series | SW |
| Hose I.D. | 3/8" |
| Hose O.D. | 0.53" |
| Hose Length | 100' |
| Pressure | 200 psi |
| Hose End | 9/16 - 18 LH(F) |
| Inlet | 1/2" NPT(F) |
| Reel Outlet | 9/16-18(M) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567027256 |
