Reelcraft TW5425-OLPT - 1/4" x 25 ft. 200 psi, T-Grade Gas Welding Reel

Reelcraft TW5425-OLPT - 1/4" x 25 ft. 200 psi, T-Grade Gas Welding Reel

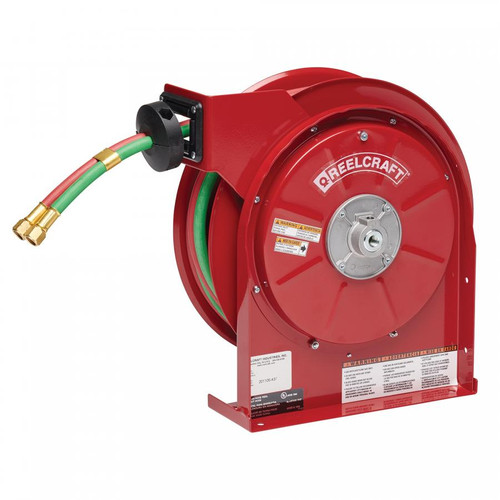

TW5425 OLPT – 1/4 in. x 25 ft. Premium Duty Welding Hose Reel T-Grade

Reelcraft TW5425-OLPT - 1/4" x 25 ft. 200 psi, T-Grade Gas Welding Reel

Item #: TW5425-OLPT

MSRP: Price: $476.00

Price: with strikethrough $535.00

Retail Price:

Sale Price: Price $442.00

(You save $34.00 )

QTY:

In Stock – Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description

Reelcraft TW5425-OLPT 1/4 x 25ft, 200 psi, Gas Weld. T Grade With Hose

Reelcraft’s Series TW spring retractable gas welding hose reels have an independent dual swivel body manufactured from aluminum and hard coated for wear resistance. This unique design assures positive separation of gases. Double-sealed, special molded O-rings prevent leakage. Swivel body and inlet are both permanently identified with machined grooves on the acetylene side to assure proper installation.

Features:

Leak prevention – The double sealed, special molded o-rings prevent leakage. The swivel inlets are both permanently identified with machined grooves on the gas side to assure proper installation.

*Reel is shipped in the top wind position. The reel image is shown in side wind position.

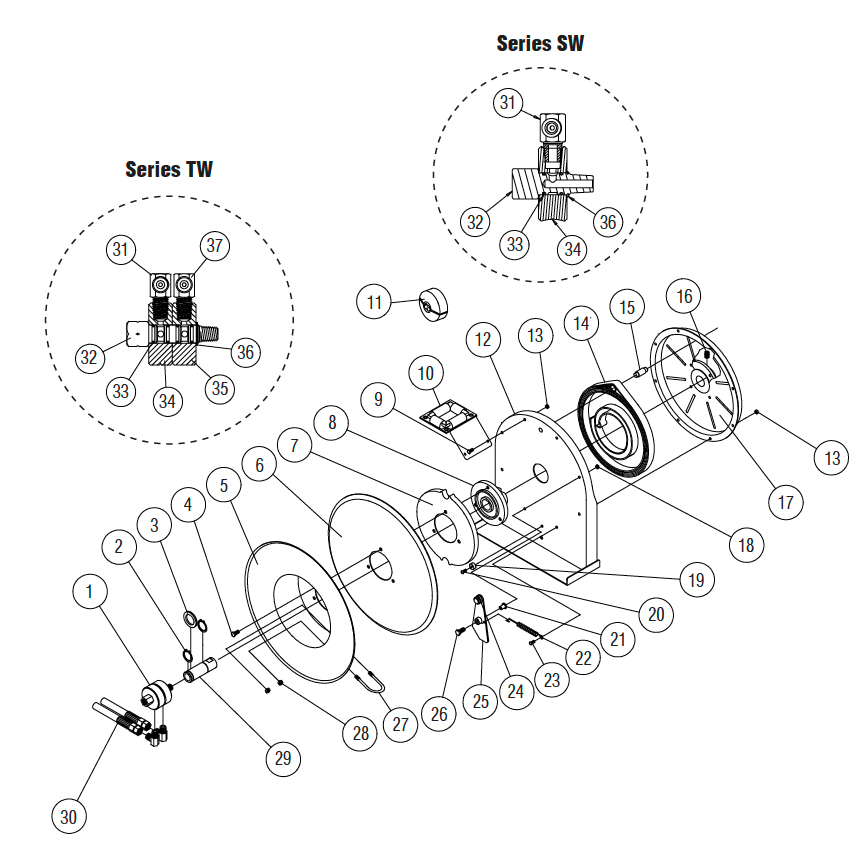

TW5425-OLPT Parts List (37 Items) ▼

Item #	# Req.	Part Number	Description
2	1	300031	1" Snap Ring
3	2	300034	Spacing Washer
4	3	S295-102	Self Tapping Screw
5	1	260022	Reel Sheave
6	1	500006	Reel Sheave Disc
7	1	S500019	Latch Cam
8	1	S260648	Spring Arbor
9	2	300002	10-32 x 1/2" Machine Screw
10	1	S500107	Guide Arm and Roller Assembly
11	1	8-HR1004-3	Bumper Stop Assembly
12	1	500101	Base Assembly
13	7	S300011	10-32 Hex Nut
15	1	S261360	Spring Case Stud
16	1	300006	3/8-16 x 1/2" Set Screw
17	1	S500103	Spring Case and Hub Assembly
18	1	S82-15	10-32 x 3/8" Nyloc Nut
19	1	S400021	Latch Bumper
20	1	S32-136	10-24 x 3/8" Screw
21	1	S400012	Latch Bushing
22	1	S400018	Latch Spring
23	5	300001	10-32 x 3/8" Machine Screw
24	1	400020	O-Ring
25	1	S400109	Latch Plate Assembly
26	1	300035	10-32 x 1" Machine Screw
27	1	3-117440	U-bolt
28	2	261650-1	1/4-20 Nyloc Nut
29	1	602306	Main Shaft
31	1	S300090	90° Ell Acet/Fuel
33	4	S314-14	O-Ring
34	1	260056	Swivel Body - Acet
36	1	300087	Snap Ring
1	1	S260057-1	Swivel Assembly
14	1	S504230	Drive Spring Assembly
30	1	601031-25	Hose Assembly
32	1	260054	Swivel Stem
35	1	260055	Swivel Body - Oxy
37	1	S300091	90° Ell Oxygen

Specifications:

Weight	26 lbs
Series	TW
Hose I.D.	1/4"
Hose O.D.	0.53"
Hose Length	25'
Pressure	200 psi
Hose End	9/16 – 18(F)
Inlet	1/4" NPT(F)
Reel Outlet	9/16 – 18(M)
Hose Included	Yes
Max Temperature	150 °F
UPC	699567000297
