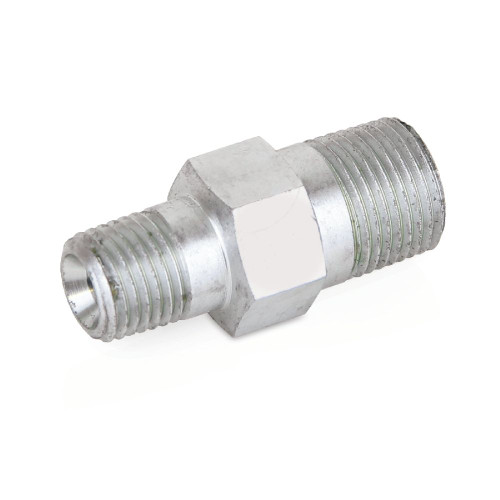

GRACO 100030 - Reducing Bushing Fitting, 1/4 NPT(M) to 1/8 NPT(F)

GRACO reducing bushing fitting designed to connect pipes or fittings of different thread sizes in spray finishing and fluid handling systems

Specifications

• Thread: 1/4 npt male to 1/8 npt female
• Fitting Type: reducing bushing

Features

• Reduces thread size from 1/4 npt to 1/8 npt
• Male to female thread configuration
• Standard NPT threading
• Durable construction for spray finishing applications

Applications

• Spray finishing systems
• Fluid handling equipment
• Pipe size reduction connections
• Pressure pot accessories
• Air prep and control systems

Compatible Equipment

• GRACO spray finishing equipment
• Pressure pots
• Air preparation systems
• Fluid delivery systems
• Model 205332, Series B
• Model 204124 Pump Elevators

Related Parts

• 100730 - 3/8 npt male to 1/8 npt female bushing
• 100176 - 3/8 npt male to 1/4 npt female bushing
• 159841 - 3/8 npt male to 1/4 npt female bushing
• 168160 - 3/8 npt male to 1/4 npt female bushing
• 100329 - 1/2 npt male to 1/8 npt female bushing
• 100206 - 1/2 npt male to 1/4 npt female bushing
• 159840 - ADAPTER; 1/4 npt(f) x 1/8 npt(m)
• 16T421 - ADAPTER, pipe hex; 1/8 npt (mxf)
• 161421 - ADAPTER; 1/8 npt(f) x 1/8 npt(m)

Part of GRACO's finishing accessories line for connecting different sized threaded components in spray systems This is reference number 16 in the Model 205332 parts diagram Part of Ref No. 1, 204121 Elevator assembly (items 101 to 117), quantity 1

Reference Manuals

• 345020 (Page 76) Finishing Accessories
• 306287 (Page 9) Elevators and Pump Supports
• 306522 (Page 7) for Air Operated Pump Elevator
• 306715 (Page 17) Stainless Steel Air-Operated Dispensing Valve
• 307427 (Page 16) Graco Fast-Flo Pump Operation
