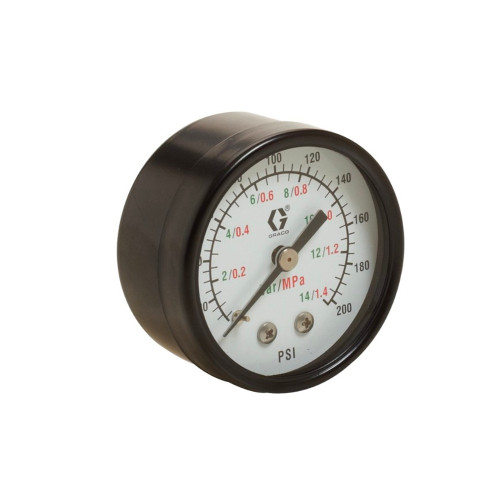

GRACO 100960 - Low Pressure Air Gauge, 0-200 PSI, Bottom Mount

Low pressure air gauge designed for monitoring compressed air systems with reliable pressure measurement up to 200 PSI. Features durable black enamel case construction and bottom mount configuration for easy installation and reading in tight spaces.

Additional Specifications

• Max Working Pressure: 0-14 bar (0-200 PSI)
• Material: Black enamel case
• Mount Type: Bottom mount
• Connection Options: 1/8 in NPT and 1/4 in NPT
• Type: air pressure gauge

Specifications

Features

• Black enamel case for durability
• Bottom mount design for space-saving installation
• Multiple NPT connection options (1/8 in and 1/4 in)
• Low pressure range ideal for air systems
• Reliable pressure monitoring
• Bottom mount configuration

Applications

• Air compressor monitoring
• Pneumatic system pressure measurement
• Low pressure air line monitoring
• Industrial air system diagnostics
• Air pressure monitoring
• Process control systems

Compatible Equipment

• EVENFLO VALVE system

Related Parts

• 110436 - Bottom Mount Low Pressure Air Gauge, 0-100 PSI Range, 1/8" NPT
• 108190 - Back Mount Low Pressure Air Gauge, 0-100 PSI Range, 1/8" NPT
• 101689 - Low Pressure Air Gauge, 0-200 PSI Back Mount

Part of GRACO's Low Pressure Air Gauges family with similar mounting and connection options across the product line Part of GRACO's air accessories line for economical air pressure regulation solutions Referenced as item 30 in the parts diagram

Reference Manuals

• 345020 (Page 78) Finishing Accessories
• 3J0419EN (Page 12) EN-A
• 3J0419EN - A (Page 11)
• 306479 (Page 7) Evenflo Automatic Pressure Control
• 306706 (Page 11) Stationary Airless Paint Sprayer 30:1 President Hydra-Spray
