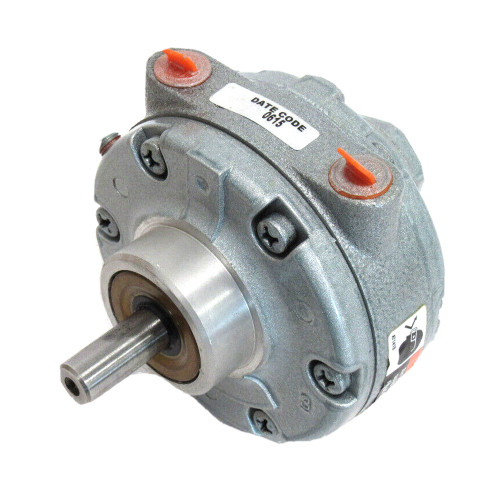

GRACO 101140 - Rotary Vane Air Motor, 3/4 HP (550 W)

The GRACO 101140 is a 3/4 HP (550 W) pneumatic rotary vane air motor used as the drive motor on Graco air-driven drum and mix-tank agitators. It is the factory replacement motor for a wide range of carbon steel and stainless steel agitators and can be paired with the 24G621 Agitator Speed Controller for variable mixing speed.

Specifications

Compatible Equipment

• 24G621 - Agitator Speed Controller (adds variable speed control to this motor)
• 203711 - Drum Agitator, No Mounting Tube, Air-Driven, 1/2 HP, 31.25" Long, Carbon Steel
• 206219 - Drum Agitator w/ Mounting Tube, Air-Driven, 1/2 HP, 31.25" Long, Carbon Steel
• 206758 - Carbon Steel Agitator for 30-Gal. Mix Tanks & 55-Gal. Drums, Air-Driven, 1/2 HP, 31.25" Long

Per Graco's replacement-motor chart (manual 345020), the 101140 also services agitator part numbers 204482, 204995, 207953, 210067, 210068, 222698, 236097, 236629, 238157, 238859, 238860, 240209, 962947, 24C293, and 24C522. Confirm fitment against your agitator model before ordering.

Related Parts

• 207335 - Air Motor Repair Kit for the 101140 (manual 308345)
• 156969 - Exhaust Muffler
• 25C765 - Alternate radial-piston motor replacement kit for newer agitators (do not pair the 101140 rotary vane motor with the 6:1 gearbox in retrofit kit 25T862)
• 16A871 - Rotary Air Motor, CW Rotation (also fits 24G621 speed controller)
• 101388 - Rotary Air Motor (also fits 24G621 speed controller)
• 111310 - Rotary Air Motor for Twistork Helix Mixer (also fits 24G621 speed controller)

Reference Manuals

• 306459 (Page 8) - 3/4 HP (550 W) Motor, 55-Gallon Drum Size Air-Driven Agitators
• 307154 (Page 11) - 3/4 HP (550 W) Motor Air-Driven Agitators
• 306840 (Page 11) - Air-Driven Agitators
• 308345 (Page 19) - Belt-Driven Stainless Steel Pneumatic Twistork Helix Agitator
• 345020 (Page 17) - Finishing Accessories (replacement air motor chart)
