GRACO 104445 - Medium Volume Fluoroelastomer O-Ring for High Pressure, Red Alert Filters

thick cross section (for Acetal and PVDF pumps series F and later, and Polypropylene pumps series J and later)

Specifications

• Material: fluoroelastomer
• Cross Section: thick

Compatible Equipment

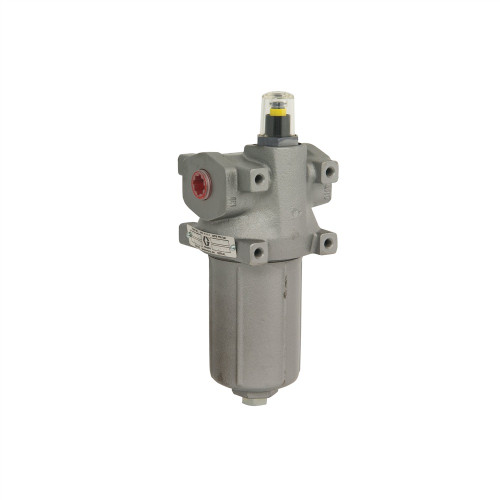

• Model No. 210090 - Medium Volume High Pressure, Red Alert Filter, 30 Mesh (250 Micron) Element to 210092 - Medium Volume High Pressure, Red Alert Filter, 200 Mesh (74 Micron) Element
• Model No. 104435
• Acetal and PVDF pumps series F and later
• Polypropylene pumps series J and later
• Filter assembly shown in Fig. 5

Related Parts

• 104443 - BACKUP, o-ring, fluoroelastomer
• 109576 - small (#016), fluoroelastomer
• 104093 - small (#016), ethylene-propylene
• 104130 - large (#119), buna
• 105260 - O-ring, Ethylene-Propylene
• 105279 - Backup o-ring, PTFE
• 113570 - O-Ring Packing
• 104443 - O-RING, backup, fluoroelastomer
• 104444 - O-RING, fluoroelastomer

Reference No. 6 in the parts diagram. Note indicates 'See Accessories for ethylene-propylene o-ring'. Keep as spare part on hand to reduce downtime. This is used in the Fluid Section (matrix column 3) of the pump assembly. Part 113570 is the thin cross section version for earlier pump series (Acetal and PVDF pumps series A to E, and Polypropylene pumps series A to H). This part is positioned at reference 6 in the filter assembly diagram

Reference Manuals

• 307252 (Page 5) High Pressure, Medium Volume
• 308652 (Page 18) Husky 205 Air-Operated Diaphragm Pumps
• 3A3940 (Page 8) Red Alert Filter
• 3A4936 (Page 10) Red Alert Filters, Instructions and Parts
• 406354 (Page 1) Fluid Section Service Kit D010XX, for Husky 205 Air-Operated Diaphragm Pumps
