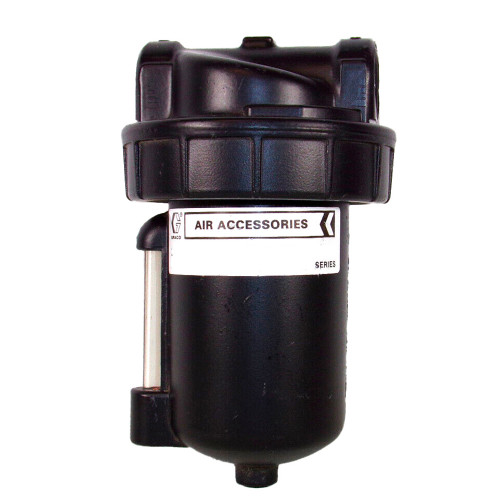

GRACO 106150 - 250 PSI Manual Drain 40 Micron 3/4" NPT(F) Inlet/Outlet Air Filter, Zinc Plated Steel

Genuine Graco OEM replacement part built to factory specifications for fit, sealing, and reliable operation in compatible Graco equipment.

Used in fluid or air control assemblies where this Graco part number is specified.

Specifications

• Flow Rate: 7.0 (250) CFM at m³/min
• Thread: 3/4 NPT(F)
• Max Working Pressure: 250 PSI (17.2 bar, 1.72 MPa)
• Material: Zinc-plated
• Inlet Outlet: 1/2 inch NPT inlet and outlet
• Micron Element: 40 micron
• Size Wxhxd Cm: 10 x 22 x 20
• Size Wxhxd In: 4.0 x 8.8 x 7.8

Features

• Air line filtration
• 3/4 NPT female connections
• Compatible with multiple pump models
• Centrifugal filter element removes contaminants and water
• Visual indicator for viewing filter contents
• Zinc-plated construction

Applications

• Air line filtration for pneumatic pumps
• Compressed air system protection
• Industrial pumping applications
• Air preparation and filtration
• Pneumatic equipment protection
• Compressed air system maintenance

Compatible Equipment

• Senator pumps
• Bulldog pumps
• King pumps
• Pneumatic pumps like Glutton, President, etc.
• Bulldog 43:1 Hydraulic Supply Pump (218334 - Stainless Bulldog 43:1 Hydraulic Supply Pump), GRACO air-powered pump systems

Related Parts

• 106149 - Air Line Filter 1/2 NPT(F) for President and Monark pumps
• 110146 - Air Filter 1 oz. bowl 1/4 NPT
• 112859 - Zinc Manual Drain Air Filter, 1" NPT(F) Inlet/Outlet, 40 Micron, 250 PSI, 1(F)
• 217074 - Zinc Manual Drain Air Filter, 1/2" NPT(F) Inlet/Outlet, 40 Micron, 250 PSI
• 222345 - Air Filter-Regulator-Lubricator (FRL) kit (2200/3400/Glutton w/ hose, bracket, gauge & swivel adapters)
• 106149 - 1/2 inch NPT inlet and outlet air line filter
• 214848 - 1/2 inch NPT inlet and outlet air line lubricator
• 214849 - 3/4 inch NPT inlet and outlet air line lubricator

Specifically designed for Senator, Bulldog and King pump models with 3/4 NPT female connections Part of GRACO's Air Preparation and Controls product line for finishing accessories Part of GRACO's air preparation system components for maintaining clean, properly conditioned air supply to pneumatic equipment

Reference Manuals

• 336833 (Page 49) Single Component Catalog - Buyer's Guide and Specifications
• 345020 (Page 34) Finishing Accessories
• 352287 (Page 2) Bulldog 43:1 Air-Powered Pump
• 3J0419EN (Page 12) EN-A
• 3J0419EN - A (Page 11)
