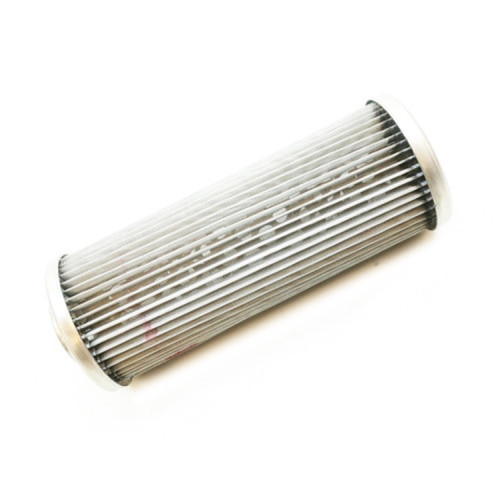

GRACO 108117 - Replacement Element Filter, 100 Mesh, 3000 PSI
100 Mesh Filter Element for GRACO Stainless Steel High Pressure Red Alert Filters - designed for efficient filtration in large circulation and supply systems with red alert indicator for timely replacement
Specifications
- Flow Rate: 10 gpm
- Max Working Pressure: 3000 psi
- Material: Filter mesh material
- Gauge: 100 mesh
- Mesh Size: 100 mesh
- Filter Area: 36 in²
- System Dimensions: 4.5" width, 4.62" depth, 11.3" height
- System Weight: 14 lb 8 oz
- Micron Rating: 149 micron
- Flow Capacity: 10 gpm (38 liter/min)
- Filtering Area: 36 sq. in. (230 cm²)
Features
- 100 mesh filtration for medium filtration needs
- Red Alert indicator signals filter element replacement
- Large flow capacity ideal for large circulation and supply systems
- Designed for high pressure applications up to 3000 psi
- Replacement element for efficient filtration maintenance
Applications
- Large circulation systems
- Supply systems requiring filtration
- High pressure fluid filtration
- Industrial filtration applications
Compatible Equipment
- 25M212 Red Alert Filter Assembly
- 210091 - Medium Volume High Pressure, Red Alert Filter, 100 Mesh (149 Micron) Element Red Alert Filter Assembly with 100 mesh filter element
- GRACO Stainless Steel High Pressure Red Alert Filter systems
- High pressure, medium volume 'red alert' Filters
- 210091 - Medium Volume High Pressure, Red Alert Filter, 100 Mesh (149 Micron) Element
Related Parts
- 108116 - 60 Mesh Filter Element
- 108118 - 200 Mesh Filter Element
- 25M212 - Red Alert Filter Assembly (no element)
- 210090 - Red Alert Filter Assembly with 60 mesh filter element
- 210091 - Red Alert Filter Assembly with 100 mesh filter element
- 210092 - Red Alert Filter Assembly with 200 mesh filter element
- 108116 - 60 mesh (250 micron) element
- 108118 - 200 mesh (74 micron) element
- 210090 - 60 mesh (250 micron) element
- 210092 - 200 mesh (74 micron) element
This is a replacement filter element only. The complete filter assembly includes stainless steel construction with glass sight and FKM o-rings. Bottom port available for installing quick flush ball valve. For more information, see manual 3A4936. Used with Part No. 210091 filter housing. For filtration of common industrial paints and coatings in finishing applications. For professional use only. Part of filter element family with different mesh ratings for different models
Reference Manuals
- 345110 (Page 1) Stainless Steel High Pressure Red Alert Filters
- 307252 (Page 1) High Pressure, Medium Volume
- 3A4936 (Page 10) Red Alert Filters, Instructions and Parts
