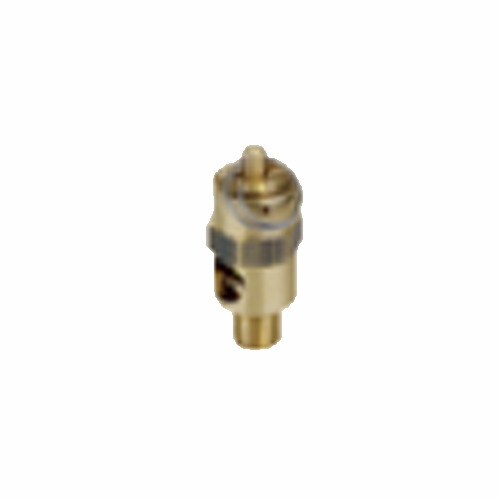

GRACO 116306 - 50 PSI Air Safety Valve for Standard AODD Pump Packages for DEF
50 PSI air safety valve designed for standard AODD pump packages, providing essential pressure protection for pneumatic diaphragm pump systems. This safety valve ensures reliable operation by preventing over-pressurization in air-operated pump applications.
Specifications
- Max Working Pressure: 50 PSI
- Valve Type: air safety valve
Features
- 50 PSI pressure rating
- Air safety protection
- Designed for AODD pump systems
- Standard package component
- 50 psi pressure rating for safe operation
- Specifically designed for AODD pump applications
Applications
- AODD pump safety protection
- Pneumatic pump systems
- Air pressure regulation
- Industrial pumping applications
- Standard AODD pump packages
- Air pressure safety control
Compatible Equipment
- Standard AODD pump packages
- Husky 515 AODD pump
- Air-operated diaphragm pumps
- Model 570153, 76 mm (3 in.) Ram, 65:1 King/CM800 with PVC follower wiper
Related Parts
- 124963 - 50 psi air safety valve
- 110147 - Air regulator and gauge, 1/4" NPT
- 110223 - Air shut-off ball valve, vented
- 124963 - 50 psi Air Safety Valve for Deluxe AODD Pump Packages for DEF
This is included in standard packages 24V677 and 24V678 for tote applications, and packages 24M499 and 24V679 for drum applications. Works with the GRACO SD Blue pneumatic pump system that operates on 30-50 PSI air pressure range. This is a safety valve component specifically for Standard AODD pump packages. A related part 124963 is available for Deluxe AODD pump packages with the same 50 psi rating. This is ref number 640 in the parts list for Model 570153. Quantity required is 1.
Reference Manuals
- 352322 (Page 5) DEF Dispensing Systems
- 310526 (Page 27) Ram Supply Unit
- 334203 (Page 10) Air Operated Diesel Exhaust Fluid (DEF) Dispense System
- 3A7003 (Page 28) Merkur® Non-Heated Spray Packages
- 3A7004 (Page 28) Merkur Electrostatic Airspray Packages, Instructions/Parts
