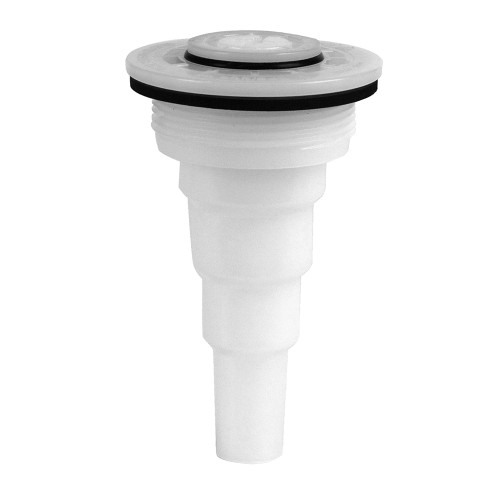

GRACO 124549 - Colder Closed System Drum Insert

Colder closed system drum insert designed to work with closed-system couplers for maintaining fluid purity and minimizing contamination. Essential component for equipment longevity and maintaining Selective Catalytic Reduction (SCR) engines by preventing fluid contamination and spills.

Features

• Maintains fluid purity
• Minimizes fluid contamination
• Prevents spills
• Essential for equipment longevity
• Supports SCR engine maintenance

Applications

• Closed-system fluid transfer
• SCR engine maintenance
• Fluid contamination prevention
• Equipment longevity applications

Compatible Equipment

• Colder closed system couplers
• SCR engines
• Closed system equipment
• Model 24F531
• Model 24F878
• Model 24F947

Related Parts

• 24F532 - Colder Closed System Coupler Kit w/ Coupler, Stainless Steel Fittings, 50 PSI
• 124548 - Colder Closed System Drum Coupler for DEF
• 125014 - Colder Closed System Drum Insert w/ Buttress Thread
• 124550 - Colder Closed System 47" Down Tube, 47"
• 124548 - COUPLER, quick connect
• 124550 - TUBE, down, 47 inch (119.4 cm)
• 124550 - TUBE, down

Part of Colder closed-system coupler family. Works in conjunction with drum couplers and down tubes for complete closed-system solutions. Part is referenced as item 6b† in the diagram. The † symbol indicates parts are included in kit or may be purchased separately. This appears to be part of a suction tube assembly system. Part of coupling assembly (ref 6a-6c), may be purchased separately or included in kit

Reference Manuals

• 352322 (Page 7) DEF Dispensing Systems
• 3A1189 (Page 10) Diesel Exhaust Fuel (DEF) System
