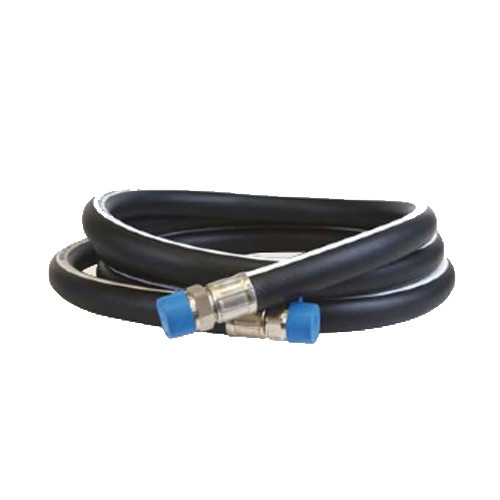

GRACO 124671 - 12' DEF Dispense Hose, 3/4" x 12 ft BSPP x 3/4" BSPP, 50 PSI, 3/4" BSPP(M)
12-foot dispense hose with 3/4" BSPP male fittings designed for pneumatic DEF dispensing applications. Part of GRACO's SD Blue system offering efficient, money-saving operation with superior suction and lift capabilities for deep tanks, totes, and longer lines up to 200 ft.
Specifications
- Flow Rate: up to 15 gpm
- Length: 12 feet
- Thread: 3/4" BSPP male
- Max Working Pressure: up to 50 PSI
- Air Operating Range: 30-50 PSI
- Hose Type: dispense hose
Features
- Premium oil resistant hoses for high-end applications
- Works with pneumatic operation requiring as little as 30 PSI
- Designed for superior suction and lift performance
- Compatible with GRACO SD Blue system versatility
- 12-foot length for extended reach
- 3/4" BSPP threaded connections on both ends
Applications
- DEF dispensing operations
- Deep tank applications
- Tote dispensing
- Long line runs up to 200 ft
- Pneumatic fluid transfer
- DEF (Diesel Exhaust Fluid) dispensing
Compatible Equipment
- Husky 515 AODD pump (24G745)
- 24M499 deluxe drum package
- Closed-system couplers and fittings
- DEF dispensing equipment
- 3/4" BSPP threaded connections
- model 24M499
Related Parts
- 124603 - 20' dispense hose, 3/4" BSPP
- 24W161 - 20' dispense hose with SST clamps
- 125079 - 12' dispense hose with cut end
- 24W154 - 12' dispense hose with SST clamps
- 124875 - 2' suction hose, 3/4" BSP(F)m x cut end (inlet hose)
- 124581 - 6' suction hose, 3/4" BSP(F)m x cut end (inlet hose)
- 125079 - 12' dispense hose, 3/4" BSPP x cut end
- 124603 - 20' dispense hose, 3/4" BSPP x 3/4" BSPP
- 125074 - 20' dispense hose, 3/4" BSPP x cut end
- 125242 - 50' dispense hose, 3/4" BSPP x 3/4" BSPP
This hose is included in the 24M499 deluxe drum package and is part of GRACO's comprehensive SD Blue pneumatic dispensing system. Part of GRACO's deluxe line of dispense hoses, designed for maintaining fluid purity and preventing contamination in closed-system applications. This is reference 9b in the diagram for drum mounted pumps
Reference Manuals
- 352322 (Page 5) DEF Dispensing Systems
- 3A1189 (Page 11) Diesel Exhaust Fuel (DEF) System
