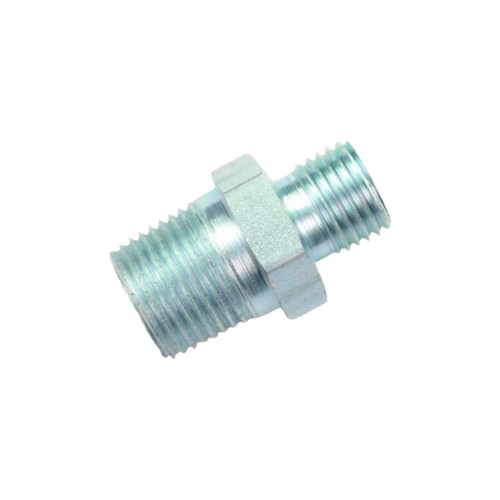

GRACO 162024 - 7250 PSI (500 Bar) Coupling Adapter, 3/8 NPT

7250 psi (500 bar) coupling adapter designed for high-pressure fluid handling applications, featuring 3/8 npt threading for secure connections in demanding industrial environments

Specifications

• Thread: 3/8 npt
• Max Working Pressure: 7250 psi (500 bar)
• Fitting Size: 3/8 npt
• Resin Size: 1/4 npt
• Fitting Type: coupling

Features

• Standard coupling design
• NPT threaded connection
• Reliable pipe/hose connection
• High pressure rating of 7250 psi (500 bar)
• NPT threading for secure connections
• Compact adapter design

Applications

• Spray finishing systems
• Paint equipment connections
• Fluid transfer lines
• High-pressure fluid systems
• Industrial equipment connections
• Hydraulic system adaptations

Compatible Equipment

• Static Mixer 15S592 systems
• High-pressure hose assemblies
• Industrial spray equipment

Related Parts

• 100451 - Standard Coupling Fitting, 1/8 NPT
• 100175 - Standard Coupling Fitting, 1/4 NPT
• 158581 - Coupling, Hex
• 100474 - Coupling, Pipe, 1-11 1/2 NPT(M)
• 113093 - Pipe Connector
• 113003 - Stainless Steel 10 x .62 Socket Head Cap Screw

Part of GRACO's standard coupling family for finishing accessories Used for static Mixer 15S592 applications, part of GRACO's coupling adapter family for high-pressure connections Part of GRACO's coupling family for high-pressure applications

Reference Manuals

• 345020 (Page 76) Finishing Accessories
• 3J0416EN (Page 14) ENAP-A
• 3J0416ENAP-A (Page 13)
• 3J0679EN (Page 14) ENEU
• 3J0679ENEU (Page 14)
