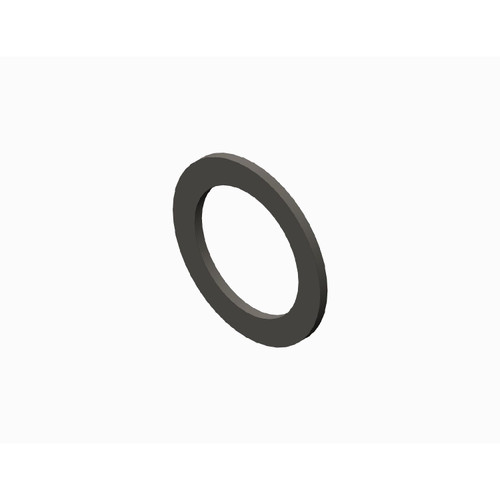

GRACO 176634 - Washer, Stud, Pistpn, 1.875" OD x 1.31" ID, Stainless Steel

Specifications

• Material: sst

Compatible Equipment

• 215932 - Pump, Displacement, Recip, Series B
• 217339 - Stainless Steel Displacement Pump 1500 PSI, Long Stroke, PTFE Packings, Series A
• 254999 - 2 Ball Transfer Pump, Displacement, Recip, SS
• 224341 - Stainless Severe-Duty, Uhmwpe/PTFE Packed SS Displacement Pump, Severe-Duty UHMWPE/PTFE Packed Stainless Steel Displacement Pump, Model 15G976 Severe-Duty, PTFE Packed Stainless Steel Displacement Pump

Related Parts

• 176633 - WASHER, backup; sst
• 176635 - V-PACKING; PTFE
• 176637 - BALL STOP; sst
• 176640 - GLAND, female; UHMWPE
• 176642 - STUD, piston; sst
• 176643 - GLAND, male; sst
• 176644 - STUD, mounting, piston; sst
• 176635 - V-PACKING, piston; PTFE
• 176637 - PIN, ball stop, piston; stainless steel
• 176638 - V-PACKING, piston; UHMWPE

Reference number 21 in the parts diagram. Material is stainless steel (sst). Quantity required is 1. Referenced as item 19 in the parts list with quantity 1. Also included in Optional PTFE Packing Conversion Kit 224889. This part is included in Repair Kit 224889, which may be purchased separately. It is reference number 19 in the parts diagram.

Reference Manuals

• 307430 (Page 10) Stainless Steel Displacement Pump
• 308116 (Page 22) Stainless Steel Pumps, Severe-Duty, UHMWPE/PTEE or PTFE Packed
• 308117 (Page 19) s, Stainless Steel Hydra-Clean Pumps
• 308118 (Page 21) Stainless Steel Pumps
• 308155 (Page 25) Dyna-Star Hydraulic Reciprocator and Pump
