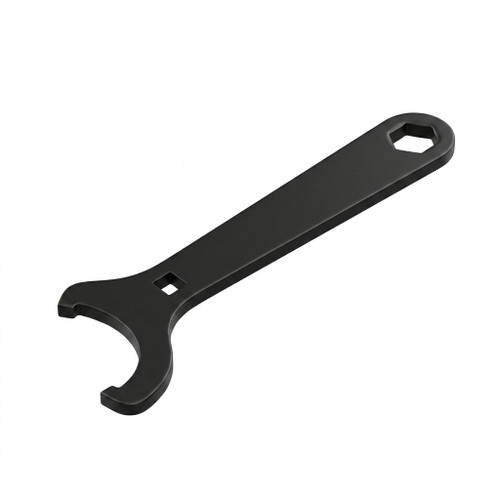

GRACO 184278 - Packing Nut Wrench Tool

Packing nut wrench tool designed for maintenance and service of GRACO Contractor King air-powered sprayers. Essential tool for proper packing nut adjustment and replacement during routine maintenance operations.

Features

• Specialized tool for packing maintenance
• Designed for proper torque application
• Essential for pump service procedures
• Specialized wrench for packing nut service
• Essential maintenance tool
• Designed for Contractor King sprayer series

Applications

• Packing installation and removal
• Pump maintenance and repair
• Field service operations
• Packing nut adjustment
• Routine sprayer maintenance
• Pump servicing

Compatible Equipment

• Dura-Flo 580cc pumps
• Related GRACO pump models requiring packing service
• Contractor King 45:1 (279005 - Bare Contractor King 45:1 Air Powered Airless Sprayer, 4500 PSI, 279006 - Chrome Contractor King 45:1 Air Powered Airless Sprayer, Complete (2-F Gun), 279026, 279007 - Chrome Contractor King 45:1 Air Powered Airless Sprayer, Big 150 (2-F Gun), 279027)
• Contractor King 60:1 (279010 - Stainless Bare Contractor King 60:1 Air Powered Airless Sprayer, 279011 - Contractor King 60:1 Air Powered Airless Sprayer, Complete (2-F Gun), 279028, 279012 - Chrome Contractor King 60:1 Air Powered Airless Sprayer, Big 150 (2-F Gun), 279029)
• Contractor King 70:1 (279013 - Contractor King 70:1 Air Powered Airless Sprayer, Bare, 279014 - Chrome Contractor King 70:1 Air Powered Airless Sprayer, Complete (2-F Gun), 279030, 279022 - Contractor King 70:1 Air Powered Airless Sprayer, Big 150 (2-F Gun), 7250 PSI, 279031)
• 24Y218 Pumps Series A

Related Parts

• 222879 - 3 PTFE / 2 Leather seal kit
• 222875 - 3 UHMWPE / 2 PTFE seal kit
• 222876 - 5 PTFE seal kit
• 244877 - 4 Leather / 1 PTFE seal kit
• 222878 - 3 UHMWPE / 2 leather seal kit
• 290619 - Stainless steel hopper kit
• 190563 - Paint outlet filter kit
• 190953 - Lift ring kit
• 190955 - Air filter and lubricator kit
• 236987 - 1/4" NPSM female/male swivel (7250 psi)

Listed as an accessory for the Dura-Flo 580cc pump system, essential tool for proper packing maintenance procedures Listed as accessory for building custom Contractor King sprayer configurations Reference number 104 in the parts diagram. Must be ordered separately. Compatible with all pump models listed (24Y218, 24Y853, 24Y219, 24Y211, 24Y212) with XL10000 Air Motor in 47:1 ratio configuration.

Reference Manuals

• 338336 (Page 2) Dura-Flo™ 580cc Pneumatic Supply Pumps
• 3J0336ENEU (Page 4)
• 308147 (Page 24) Carbon Steel Dura-Flo 1800 Pumps
• 308149 (Page 25) Carbon Steel Check-Mate 2100 Pump
• 308150 (Page 21) Stainless Steel Check-Mate 2100 Pump
