GRACO 217074 - Zinc Manual Drain Air Filter, 1/2" NPT(F) Inlet/Outlet, 40 Micron, 250 PSI

Air filter with centrifugal filter element that removes contaminants and water from compressed air supply. Features visual indicator for viewing filter contents to monitor filter condition. Part of GRACO's air preparation system designed to protect and maintain pneumatic equipment performance.

Specifications

• Flow Rate: 3.0 (106) CFM at m³/min
• Thread: 1/2(f)
• Max Working Pressure: 250 psi (17.2 bar, 1.72 MPa)
• Material: Zinc-plated
• Micron Element: 40 micron
• Size Wxhxd Cm: 7.6 x 19 x 17
• Size Wxhxd In: 3.0 x 7.5 x 6.6
• Filtration: 40 micron

Features

• Centrifugal filter element removes contaminants and water
• Visual indicator for viewing filter contents
• 40 micron filtration
• Zinc-plated construction for durability
• Compact design
• Air supply protection

Applications

• Pneumatic equipment protection
• Air supply preparation and conditioning
• Use with pneumatic pumps like Glutton, President, etc.
• Air supply control systems
• Compressed air filtration
• Equipment protection

Compatible Equipment

• Pneumatic pumps like Glutton, President, etc.

Related Parts

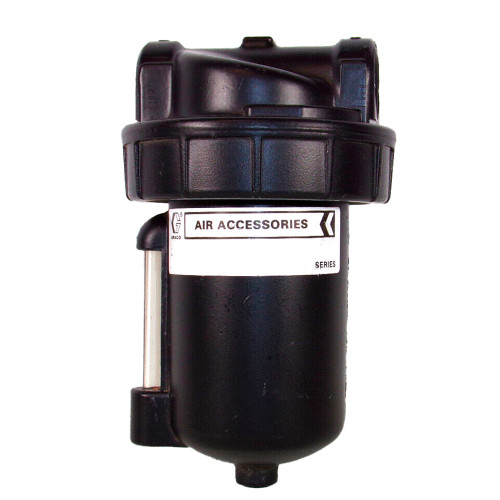

• 106150 - 250 PSI Manual Drain 40 Micron 3/4" NPT(F) Inlet/Outlet Air Filter
• 112859 - Zinc Manual Drain Air Filter, 1" NPT(F) Inlet/Outlet, 40 Micron, 250 PSI, 1(F)
• 206197 - Air Pressure Regulator w/ 1/2" NPT Inlet/Outlet, 1/4 Gauge Port, Tee Handle Type
• 207755 - High Volume Air Pressure Regulator, 3/4" NPT Inlet / Outlet, 380 cfm, 125 PSI max
• 214849 - Zinc Air Line Lubricator, 3/4" NPT(F) Inlet/Outlet, 250 PSI, 3/4 NPT(Fbe)
• 217072 - Air Line Filter, Regulator, Lubricator, 1/2" NPT(F) Inlet/Outlet, 250 PSI
• 217073 - Air Line Filter, Regulator, Lubricator, 3/4" NPT(F) Inlet/Outlet, 250 PSI
• 222345 - Air Filter-Regulator-Lubricator (FRL) kit (2200/3400/Glutton w/ hose, bracket, gauge & swivel adapters)

Part of GRACO's air preparation and controls system. Designed to work as standalone filter or as part of complete FRL (Filter, Regulator, Lubricator) system. Part of GRACO's air supply controls product line for maintaining clean compressed air

Reference Manuals

• 344837 (Page 7) Graco 4-Ball Pump Technology
• 345020 (Page 34) Finishing Accessories
• 345092 (Page 27) Circulation Pumps
• 3J0419EN (Page 12) EN-A
• 3J0419EN - A (Page 11)
