GRACO 218591 - Roller Bracket Repair Kit, #10 - 32 and M6 x 1.0 x 20
Specifications
- Thread: #10 - 32 and M6 x 1.0 x 20
Compatible Equipment
- Single-Unit Dispense Console 222645 - Single-Unit Dispense Console
- Four-Unit Dispense Console 223448 - Console Dispense (4 Unit)
- Six-Unit Dispense Console Model 222629
Related Parts
- 222641 - Repair Kit

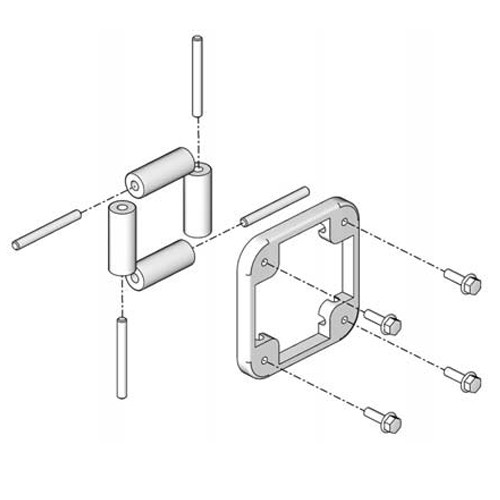

- 15Y478, 26a - BRACKET, roller, 26b - PIN, roller, 26c - ROLLER, hose, 26d - SCREW, M6 x 1.0 x 20
Kit Contents
- BRACKET, hose guide (1)
- PIN, roller (4)
- ROLLER, hose (4)
- NUT, lock, #10 - 32 (4)
- SCREW, #10 - 32 x 3/4 in. (4)
- SCREW, M6 x 1.0 x 20 (4)
- 25a
- 25b
- 25c
- 25d
This is reference item #4 in the parts diagram. Quantities vary by model: 12 for model 222629, 8 for model 223448, 2 for model 222645. Part 222641 is also listed as 'KIT, replacement, bracket roller' with the same quantities and compatible models. Instruction Manual: 406743. Related to Cabinet Mounting Kit 15Y478 which contains similar hose guide components. Reference to page 36 for additional details. Part numbers 25a-25d are included in the kit but specific descriptions are not provided on this page.
Reference Manuals
- 307953 (Page 3) Dispense Consoles
- 3A7926 (Page 2) SD Series Hose Reels
- 3A8626 (Page 30) SDX and XDX 10/20 Series Hose Reels
- 406743 (Page 1) Hose Guide Kits
