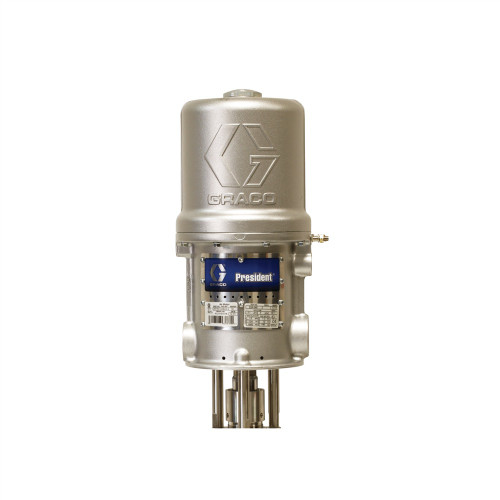

GRACO 223184 President 4:1 Pneumatic 2-Ball Piston Pump, CS, Stubby Length
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
Compatible Equipment
- President pneumatic pump systems
- Applications requiring 4:1 pressure ratio
- 4:1 Ratio President Pump
Related Parts
- 237143 - Stubby Cs President 3:1 Pneumatic 2-Ball Piston Pump, 3 Leather/ 2 PTFE Seals
- 217580 - PTFE Stubby Length Cs President 15:1 Pneumatic 2-Ball Piston Pump, 1800 PSI (124
- 223586 - Stubby Length Cs President 30:1 Pneumatic 2-Ball Piston Pump, 3600 PSI (250 Bar)
- 237144 - President 3:1 Pneumatic 2-Ball Piston Pump, CS, Drum, 4 Leather/1 PTFE Seals
- 218795 - Drum Length Cs President 3:1 Pneumatic 2-Ball Piston Pump, 1800 PSI (124
- 223183 - Leather Drum Length Cs President 4:1 Pneumatic 2-Ball Piston Pump
- 239326 - PTFE 10:1 Ratio President Hydra-Clean Pump, 2" Bung Mount, 1800 PSI (124
- 221075 - Stainless Drum Length Cs President 30:1 Pneumatic 2-Ball Piston Pump
- 218747 - Stainless Stubby Length SS President 3:1 Pneumatic 2-Ball Piston Pump
Reference Manuals
- 344905 (Page 6) Supply Pumps Brochure
- 307986 (Page 1) 4:1 Ratio President Pumps
Specifications:
| Air Inlet Size (in) | 0.5 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Supply |
| Compatible Material | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Stubby Length |
| Material | Carbon Steel |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 8 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 24.8 |
| Maximum Working Pressure (psi) | 3600 |
| Portable | Non-Portable |
| Pump Ratio | 4:1 |
| Seal Material | UHMWPE, Leather |
| Standards Met | ATEX, CE |
| Type | Pneumatic Piston Pump |
| Wetted Material | Carbon Steel |
