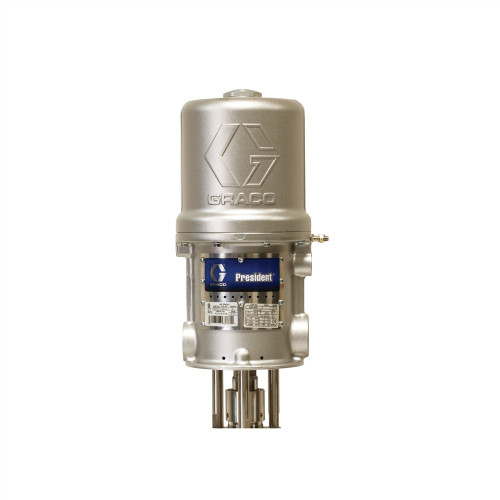

GRACO 224346 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby, UHMWPE/Neoprene Packings
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
Compatible Equipment
- President 10:1 pump systems
- Manual assembly models 308116, 308117, 308118, 308738
- Models 206515 - 10:1 Ratio Pneumatic Hydra-Clean Drum Mount, 1800 PSI (125 Bar
Related Parts
- 224342 - Stainless Stubby SS President 10:1 Pneumatic 2-Ball Piston Pump, 125 Bar (12.5 MPa
- 224347 - President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby w/ Riser Tube, UHMWPE/Neoprene Packings
- 224348 - Stainless Uhmwpe/PTFE Packings Drum SS President 10:1 Pneumatic 2-Ball Piston Pump
- 224345 - 5:1 Ratio Monark® Pump
- 224347 - 10:1 Ratio President® Pump, with riser tube
Reference Manuals
- 344905 (Page 6) Supply Pumps Brochure
- 306817 (Page 13) 10:1 President Pump Hydra-Clean Units
- 308117 (Page 1) s, Stainless Steel Hydra-Clean Pumps
Specifications:
| Air Inlet Size (in) | 0.5 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Supply |
| Compatible Material | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Stubby Length |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 3 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 2.5 |
| Maximum Working Pressure (psi) | 360 |
| Portable | Non-Portable |
| Pump Ratio | 10:1 |
| Seal Material | UHMWPE, Neoprene |
| Standards Met | ATEX, CE |
| Type | Pneumatic Piston Pump |
| Wetted Material | Stainless Steel |
