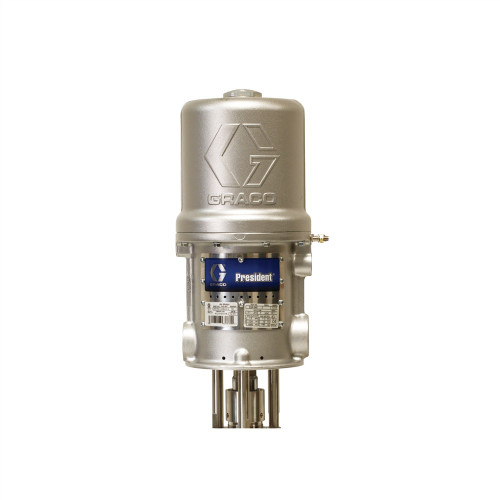

GRACO 224348 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Drum, UHMWPE/PTFE Packings
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
Compatible Equipment
- 10:1 ratio President pneumatic pump systems
- Drum mounting applications
- 55 gallon (200 liter) drum size, with bung adapter
- Displacement pump assembly shown in service procedure
Related Parts
- 224342 - Stainless Stubby SS President 10:1 Pneumatic 2-Ball Piston Pump, 125 Bar (12.5 MPa
- 224346 - Uhmwpe/Neoprene Packings Stubby Stainless President 10:1 Pneumatic 2-Ball Piston Pump
- 224347 - President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby w/ Riser Tube, UHMWPE/Neoprene Packings
- 224350 - Stainless Uhmwpe/PTFE Packings Drum Length SS Monark 5:1 Pneumatic 2-Ball Piston Pump
Reference Manuals
- 344905 (Page 6) Supply Pumps Brochure
- 308118 (Page 1) Stainless Steel Pumps
- X027186 (Page 31) Xtreme-Duty™ Agitator and Packages
Specifications:
| Air Inlet Size (in) | 0.5 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Supply |
| Compatible Material | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Drum Length |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 3 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 2.5 |
| Maximum Working Pressure (psi) | 360 |
| Portable | Non-Portable |
| Pump Ratio | 10:1 |
| Seal Material | UHMWPE, PTFE |
| Standards Met | ATEX, CE |
| Type | Pneumatic Piston Pump |
| Wetted Material | Stainless Steel |
