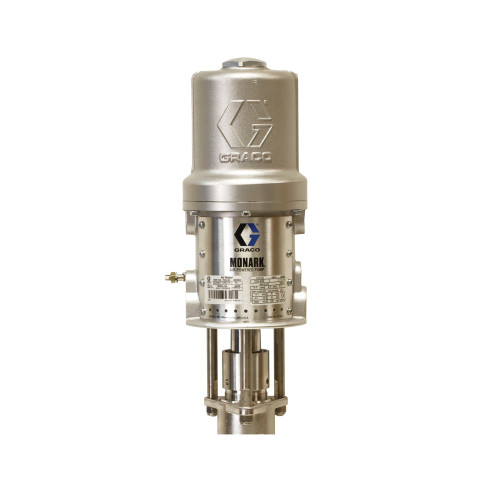

GRACO 224350 Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, Drum Length, UHMWPE/PTFE Packings
Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes.
- Drum and stubby length models available for mounting and application flexibility
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids
- Fluid return stanchion for circulation back to the pump
- Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids
Compatible Equipment
- Standard drum containers
- Industrial fluid transfer systems
- Chemical dispensing equipment
- Monark pump systems
- Drum mounting applications
- 55 gallon (200 liter) drum size
Related Parts
- 218956 - Carbon Steel Monark 5:1 Pneumatic 2-Ball Piston Pump, 35 Bar (3.5 MPa
- 224343 - Monark 5:1 Pneumatic 2-Ball Piston Pump, SS, UHMWPE/PTFE Packings
- 224345 - Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/Neoprene Packings
- 218763 - Monark 1.5:1
- 223186 - Monark 2:1
- 224343 - Monark 5:1
- 224345 - Monark 5:1
Reference Manuals
- 336833 (Page 72) Single Component Catalog - Buyer's Guide and Specifications
- 344905 (Page 7) Supply Pumps Brochure
- 308118 (Page 1) Stainless Steel Pumps
- 3A0235 (Page 3) Feed Supply Kits
- X027186 (Page 31) Xtreme-Duty™ Agitator and Packages
Specifications:
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Supply |
| Compatible Material | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Drum Length |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 6.2 |
| Maximum Working Pressure (psi) | 900 |
| Portable | Non-Portable |
| Pump Ratio | 5:1 |
| Seal Material | UHMWPE, PTFE |
| Standards Met | ATEX, CE |
| Type | Pneumatic Piston Pump |
| Wetted Material | Stainless Steel |
