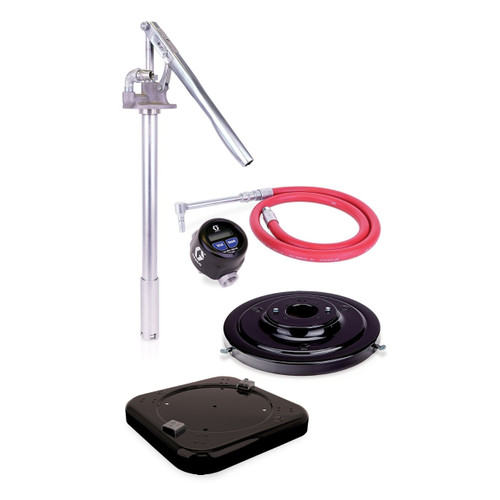

GRACO 225376 - 16 Gal. Pail Gear Lube Portable Dispensing Package w/ Meter 175 PSI
Designed for manual dispensing of fluid oil from bulk containers to point of application.
Additional Specifications
- Max Working Pressure: 175 PSI (1.2 MPa, 12 bar) Maximum Working Pressure
- Mounting: Portable Base
- Cover: Cover
- Meter: In-line, electronic
- Size: 120 lb. size
- Series: Series B
- Features: with meter
- Height: 37 in. (940 mm)
- Width: 19 in. (483 mm)
- Weight: 36 lb. (16 kg)
Specifications
| Application | Industrial |
| Compatible Material | Oil, Grease |
| Includes | Portable Base Assembly, Hose and Meter Assembly, Cover Assembly, Hand Pump Assembly |
| Maximum Working Pressure (MPa) | 1.2 |
| Maximum Working Pressure (psi) | 175 |
| Reservoir Size (L) | 60.6 |
| Reservoir Size (gal) | 16 |
| Type | Manual Piston Pump |
Compatible Equipment
- Hand-Operated dispensing systems
Related Parts
- 225378 - 16 Gal. Pail Gear Lube Portable Dispensing Package
- 225380 - 16 Gal. Pail Gear Lube Stationary Dispensing Package
- 225384 - Manually-Operated 16 Gallon Gear Lube Metered Dispensing Pump - Portable Package
- 225880 - Manually-Operated 16 Gallon Metered Dispensing Pump - Portable Package
Hand-Operated, 120 lb. size gear lube dispenser with portable base mounting, cover, and in-line electronic meter. For dispensing non-corrosive and non-abrasive oils and lubricants only. For professional use only. This is a Gear Lube Dispenser model. Full specifications would be found on page 6 of the manual. Related models in the same family include 225378 (Series A without meter), 225380 (Series A), and 225384 (Series B). Part of a series of similar models with varying dimensions and weights
Reference Manuals
- 306436 (Page 1) Hand Pump Assembly, Gear Lube Dispensers; Automatic Transmission Fluid Dispenser
