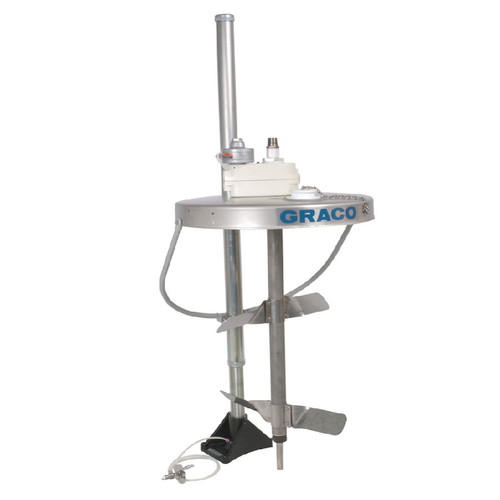

GRACO 231414 Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit, air driven, 1/2 HP, 32 inches (81.25 cm) long
Features:
Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit.
- Heavy duty gearbox mixes high viscosity materials
- Leak-free and oil-less gearbox prevents material contamination
- Stainless steel agitator and cover for corrosion resistance and waterborne compatibility
- Twin paddles thoroughly mix finishing materials
- Siphon option allows material transfer through agitator shaft
- Access port for easy sampling and inspection of material during operation
- Maximum viscosity 3,000 cps
Related Parts
- 231413 - Same as 231414 without siphon capability
- 238157 - Heavy-duty back-geared agitator
- 240209 - Same as 238157 with siphon kit
- 231413 - Same as 231414, except without siphon capability
- 238250 - Siphon tube kit; fits 238157 agitator
- 238157 - Heavy duty back geared agitator
- 238250 - Siphon tube kit
Reference Manuals
- 344837 (Page 7) Graco 4-Ball Pump Technology
- 345020 (Page 16) Finishing Accessories
- 348645 (Page 12) FRP Systems
- 349820 (Page 16) FRP Systems Brochure
- 308466 (Page 6) STAINLESS STEEL, PASSIVATED Drum Covers
Specifications:
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPT |
| For Use With | 55 Gallon (208 Liter) Drum |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 1200 |
| Maximum Viscosity (cP) | 3000 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Power Rating (HP) | 0.25 |
| Type | Agitator |
| Weight (lb) | 25.8 |
| Wetted Material | Stainless Steel, Acetal, AF, Nylon, PTFE |
