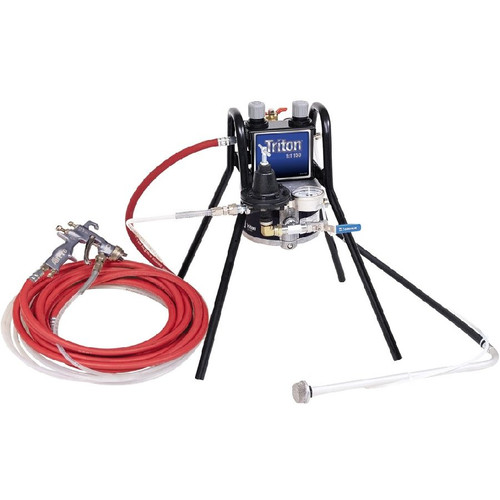

GRACO 233476 - Triton SST Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
Triton air operated diaphragm pump package designed for metal applications, featuring a stainless steel stand mount configuration with suction hose capability. Delivers affordable, fine finish spraying with consistent spray pattern and uniform film thickness while requiring minimal maintenance.
Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Quick color changes and fast material refills save time and money
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
- Rugged, stainless steel construction pump handles a wide variety of fluids
Additional Specifications
- Material: Stainless Steel
- Pump Type: Air operated diaphragm
- Nozzle Size: .055 inch (1.5 mm)
- Gun Type: AirPro Conventional Gun
- Series: D
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers, Waterborne |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | AirPro |
| Gun Technology | Conventional |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Mount Location | Stand Mount |
| Mount Type | Stand Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | Conventional |
| Type | Air-Powered Sprayer |
| Weight (lb) | 27 |
Features
- Air operated diaphragm pump technology
- Durable package with little maintenance required
- Consistent spray pattern and uniform film thickness
- Stainless steel construction
- Stand mount configuration
- Suction hose capability
Applications
- Metal applications
- Wood applications
- Fine finish spraying
- Professional spray finishing
- Industrial coating applications
- Paint spraying operations
Compatible Equipment
- Conventional air spray guns
- Stellair ACE spray guns
- Electrostatic Pro Xp air spray guns
- TRITON spray finishing systems
- AirPro Conventional Gun applications
Related Parts
- 233468 - Triton Aluminum Spray Package, Pail, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233469 - Triton SST Spray Package, Pail, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233470 - Triton Aluminum Spray Package, Pail, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233471 - Triton SST Spray Package, Pail, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233475 - Triton Aluminum Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233477 - Triton Aluminum Spray Package, Stand, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 233478 - Triton SST Spray Package, Stand, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233482 - Triton Aluminum Spray Package, Cart, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055"Nozzle for Metal Applications
- 233483 - Triton SST Spray Package, Cart, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233484 - Triton Aluminum Spray Package, Cart, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
Kit Contents
- 2004145 - Stellair Conventional Gun 1.4 mm (.055 in) nozzle
- Air hose 7.6 m (25 ft)
- Fluid hose 7.6 m (25 ft)
- Suction hose
Part of the Triton Air Spray Package family specifically designed for metal applications with stainless steel construction for durability Part of the TRITON Spray Finishing Package series. Bare packages do not include hose and gun according to footnote. This unit includes the AirPro Conventional Gun with .055 inch nozzle. This is a Stand Mount Series model with CE approval (II 2 G Ex h IIB T6 Gb). Part of the Stellair Conventional Gun product line.
Reference Manuals
- 300541 (Page 5) Triton
- 338753 (Page 2) Triton Spray Packages
- 309304 (Page 3) Triton 1:1 Spray Packages
- 309305 (Page 2) for Triton 1:1 Pump French, Spanish, Portuguese
