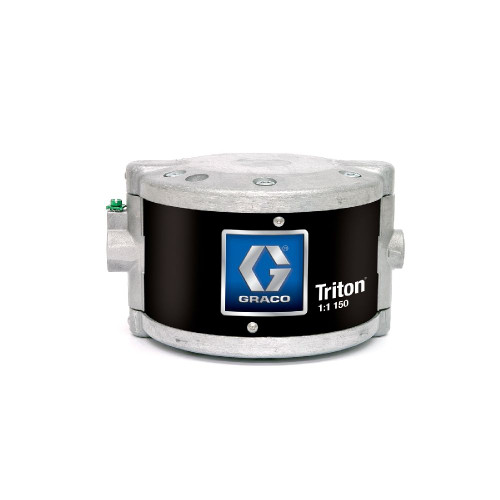

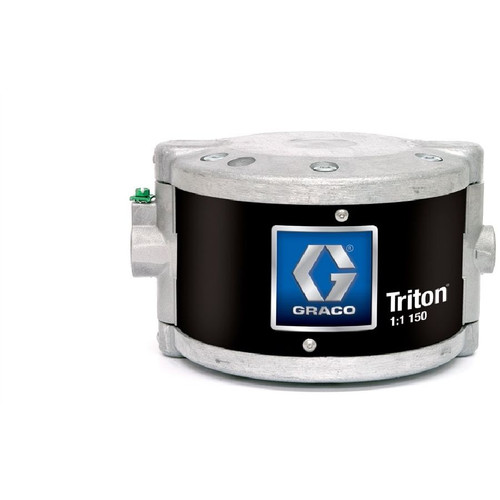

GRACO 233776 - Triton Air-Operated Diaphragm Pump, Bare, AL, BSPP, Aluminum, 115 PSI, BSPP threads

Specifications

• Thread: BSPP threads
• Max Working Pressure: 115 PSI (0.8 MPa, 8 bar) Maximum Fluid Working Pressure / 115 PSI (0.8 MPa, 8 bar) Maximum Air Input Pressure
• Material: Aluminum
• Series: Series C
• Pump Type: 1:1 Diaphragm Pump
• Application: Used to pump waterborne and solvent-based paints and catalysts

Compatible Equipment

• TRITON 1:1 Diaphragm Pump
• 233500 - NPT Threads NPT Al Bare Triton Air-Operated Diaphragm Pump, 7 Bar (0.7 MPa
• 233501 - NPT Threads Stainless NPT SS Bare Triton Air-Operated Diaphragm Pump, 7 Bar (0.7 MPa
• 233777 - Triton Air-Operated Diaphragm Pump, Bare, SST, BSPP

Related Parts

• 233500 - Aluminum Pump, Series D, NPT threads
• 233501 - Stainless Steel Pump, Series C, NPT threads
• 233777 - Stainless Steel, Series C, BSPP threads
• 233500 - NPT Threads NPT Al Bare Triton Air-Operated Diaphragm Pump, 7 Bar (0.7 MPa
• 233501 - NPT Threads Stainless NPT SS Bare Triton Air-Operated Diaphragm Pump, 7 Bar (0.7 MPa
• 233777 - Triton Air-Operated Diaphragm Pump, Bare, SST, BSPP

For professional use only. U.S. and Foreign Patents Pending. Part shown in diagram is 233501. Part of a family of pumps that includes aluminum and stainless steel versions with different thread types (NPT and BSPP) Part 233776 appears to be referenced in the context of: 1) COVER, housing (Part No. 197674) - for Part Nos. 233500 and 233776; aluminum (Qty: 2), 2) FITTING, air inlet (Part No. 198831) - for Part Nos. 233776 and 233777 (Qty: 1), 3) SCREW, cap, socket-hd; M8 x 18 (Part No. 117367) - for Part Nos. 233500 and 233776 (Qty: 12). This suggests 233776 is likely a pump model that uses these components.

Reference Manuals

• 309303 (Page 1) Triton 1:1 Diaphragm Pump
• 406706 (Page 1) 24A155 Shaft and Bearing Repair Kit for Triton 308 Diaphragm Pumps, Genuine Graco and Accessories
