GRACO 234404 - Stage 3 - Desiccant housing, removes uncondensed moisture, 3/4 reduced to 1/2 NPT(f) air Inlet/Outlet

Stage 3 desiccant housing component of GRACO's 3-stage air preparation system that removes uncondensed moisture from compressed air to ensure equipment receives clean, dry air for optimal performance and longevity.

Specifications

• Flow Rate: 30 CFM
• Thread: 3/4" Reduced to 1/2" npt(f) inlet, 3/4" Reduced to 3/8" npt(f) outlet
• Max Working Pressure: 175 psi (1.2 MPa, 12 bar)
• Stage: Stage 3
• Function: removes uncondensed moisture
• Air Inlet: 3/4 in reduced to 1/2 in npt(f)
• Air Outlet: 3/4 in reduced to 1/2 in npt(f)
• Max Operating Pressure: 12 bar (175 psi, 1.2MPa)
• Air Flow Capacity: 30 CFM at 100 psi (0.7 MPa, 7 bar)
• Series: B

Features

• Stage 3 moisture removal capability
• Desiccant housing design
• Reduced NPT fittings for space efficiency
• High pressure rating up to 175 psi
• 30 CFM air flow capacity
• Removes uncondensed moisture from compressed air

Applications

• Compressed air drying systems
• Air preparation systems
• Paint booth air supply
• Moisture removal from compressed air lines
• Industrial air treatment
• Spray finishing equipment

Compatible Equipment

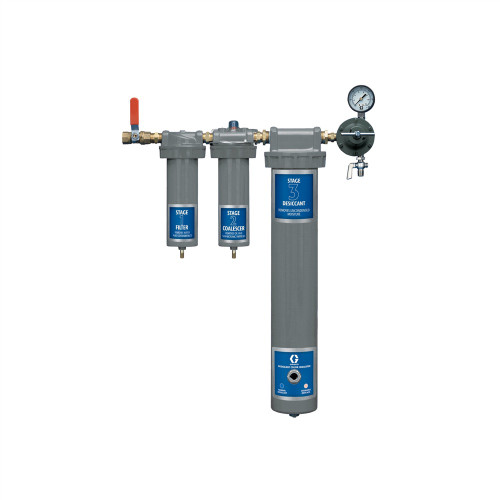

• 234401 - 3-Stage Desiccant Drying System, 3 stage system includes: 234402, 234403 & 234404 Desiccant Air Drying System
• GRACO air preparation systems
• GRACO 3-stage desiccant drying system (234401 - 3-Stage Desiccant Drying System, 3 stage system includes: 234402, 234403 & 234404)
• Stage 1 air filter (234402 - Air GRACO Filter Kit, 1/2" NPT(F) Inlet & Outlet, 175 PSI (1.2 MPa, 12 Bar))
• Stage 2 coalescer (234403 - Stage 2 Coalescer w/ Auto Drain, Removes Oil & Particles to .01 micron, 1/2" NPT(F) Inlet/Outlet)
• Model 24M178, Series B

Related Parts

• 234402 - Stage 1 Air filter with auto drain
• 234403 - Stage 2 Coalescer with auto drain
• U22604 - Self-relieving air regulator
• 234401 - Desiccant Air Drying System
• 118502 - Replacement Desiccant 4-pack
• 234401 - Complete 3-stage system
• 234402 - Stage 1 air filter
• 234403 - Stage 2 coalescer
• 288810 - Replacement desiccant, 5 lb
• 288823 - Replacement desiccant, 20 lb

This is Stage 3 of a multi-stage air preparation system. Part of the complete 234401 Desiccant Air Drying System shown in the recommended air piping layout diagram. This is Stage 3 of a 3-stage air preparation system. The complete system (234401) includes parts 234402, 234403, and 234404 together. Part of a 3-stage desiccant air drying system. This is the final stage that removes uncondensed moisture.

Reference Manuals

• 320556 (Page 2) Desiccant Air Drying System
• 345020 (Page 28) Finishing Accessories
• 309921 (Page 1) Desiccant Air Drying System
