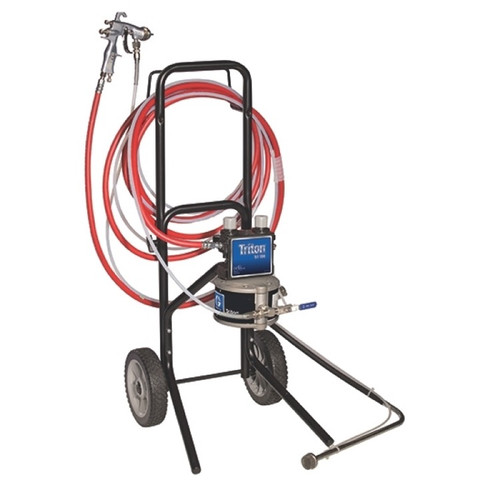

GRACO 234915 - Triton Aluminum Spray Package, Cart, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal, Aluminum
Triton air operated diaphragm pump spray package designed for metal applications, featuring a cart-mounted configuration with 60 PSI fluid regulator. Includes suction hose, air hose, fluid hose, and Stellair Compliant Gun with 1.4 mm (.055 in) nozzle. Delivers affordable, fine finish spraying with consistent spray pattern and uniform film thickness while requiring little maintenance.
Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Quick color changes and fast material refills save time and money
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
Additional Specifications
- Max Working Pressure: 60 PSI
- Material: Aluminum
- Nozzle Size: .055 in (1.5 mm)
- Mount Type: Cart-Mount
- Pump Type: Air operated diaphragm
- Gun Type: Stellair Compliant Gun
- Series: Cart Mount Series
- Pump Material: Aluminum
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | AirPro |
| Gun Technology | Compliant |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Mount Location | Cart Mount |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | Compliant |
| Type | Air-Powered Sprayer |
| Weight (lb) | 29.98 |
Features
- Air operated diaphragm pump operation
- Durable package with little maintenance required
- Consistent spray pattern and uniform film thickness
- Cart-mounted for mobility
- 60 PSI fluid regulator included
- Complete package with hoses and spray gun
Applications
- Metal applications
- Fine finish spraying
- Wood and metal coating applications
- Professional spray finishing
- Industrial coating applications
- Paint spraying operations
Compatible Equipment
- Triton air operated diaphragm pumps
- TRITON spray finishing systems
- Cart Mount Series
Related Parts
- 234916 - Triton SST Spray Package, Cart, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal
- 234913 - Triton 1:1 Aluminum Stand-Mount Spray Package w/ Stellair Compliant Gun (.055" Nozzle)
- 234914 - Triton SST Spray Package, Stand, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal
- 234917 - Triton Aluminum Spray Package, Wall, 60 PSI Air Regulator & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal Applications
- 234918 - Triton SST Spray Package, Wall, 100 PSI AIr Regulator & Fluid Hoses, AirPro Compliant Gun .055 in Nozzle for Metal Applications
- 234916 - Stainless Steel Cart-Mount with 100 PSI AirPro Compliant Gun
- 234913 - Aluminum 4-Legged Stand-Mount with 60 PSI AirPro Compliant Gun
- 234914 - Stainless Steel 4-Legged Stand-Mount with 100 PSI AirPro Compliant Gun
- 234911 (Pail Mount)
- 234913 (Stand Mount)
Kit Contents
- 2004155 - Stellair Compliant Gun 1.4 mm (.055 in) nozzle
- Air hose (7.6 m/25 ft)
- Fluid hose (7.6 m/25 ft)
- Suction hose
- 60 PSI fluid regulator
- Cart-mount unit
- AirPro Compliant Gun
- .055 in (1.5 mm) nozzle
Part of the Stellair General Metal Application Packages family. Package includes aluminum construction with stand mount configuration. Part of TRITON Spray Finishing Package series. Bare packages do not include hose and gun separately - this is a complete package. This is a Cart Mount Series model with CE approval marking (II 2 G Ex h IIB T6 Gb). Has UKCA approval as well.
Reference Manuals
- 300541 (Page 5) Triton
- 338753 (Page 2) Triton Spray Packages
- 309304 (Page 3) Triton 1:1 Spray Packages
