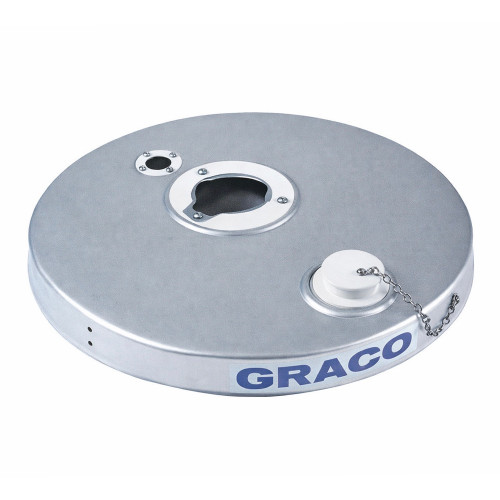

GRACO 237308 - Assembly Drum Cover

GRACO 237308 Drum Cover Assembly with two bolt mounting design integrates pumps, agitators, and accessories with drum, elevator system, and other containers. Features stainless steel construction compatible with catalyst, waterborne, and other finishing materials with inspection port for clean and easy monitoring.

Specifications

• Material: 304 SST
• Mounting: two bolt mounting

Features

• Integrate pumps, agitators, and accessories with drum, elevator system, and other containers
• Many mounting options and configurations
• Inspection port for clean and easy monitoring
• Stainless steel construction is compatible with catalyst, waterborne, and other finishing materials
• Two bolt mounting design
• Includes inspection port plug, bolts, nuts, and gaskets

Applications

• Finishing applications
• Paint systems
• Catalyst applications
• Waterborne coatings
• Drum integration with pumps and agitators

Compatible Equipment

• President pump
• Agitators 204995 - Drum agitator without Mounting tube, Air-Driven, 1/2 HP, 31.25" Long, Carbon Steel
• Agitator 206219 - Drum Agitator w/ Mounting Tube, Air-Driven, 1/2 HP, 31.25" Long, Carboon Steel
• Filter 214724 - Gb Filter, Paint, psi 5000
• 231063 - Stationary Airless Paint Sprayer- 30:1 President Hydra–Spray, 3000 PSI (21.0 MPa, Series C, 30:1 President® Hydra-Spray®

Related Parts

• 237306 - Drum Cover for President, Monark, Standard, & Fast-Flo Pumps (Standard & Fast-Flo require adaptor plate), Series A
• 237307 - Drum Assembly Cover for Agitators
• 238008 - Drum Cover Assembly, M5 x 0.8
• 238283 - Series A Drum Cover for 238157 Agitators, M5 x 0.8 (for Hex Nut)
• 17S314 - Cover, Drum, 304SS
• 24Y564 - COVER, DRUM, AGITATOR, ELECTRIC

Kit Contents

• Inspection port plug
• Bolts
• Nuts
• Gaskets

Part of GRACO drum cover family with multiple mounting configurations available. Manual 308466 provides additional information. Reference number 12 in the parts list. References 'See 308466 for parts' which suggests this may be part of a larger assembly or kit with part number 308466 This is a table of contents page. Detailed specifications for part 237308 would be found on page 4 of this manual. Related parts are other drum covers in the Series A family.

Reference Manuals

• 345020 (Page 25) Finishing Accessories
• 306706 (Page 11) Stationary Airless Paint Sprayer 30:1 President Hydra-Spray
• 308466 (Page 2) STAINLESS STEEL, PASSIVATED Drum Covers
