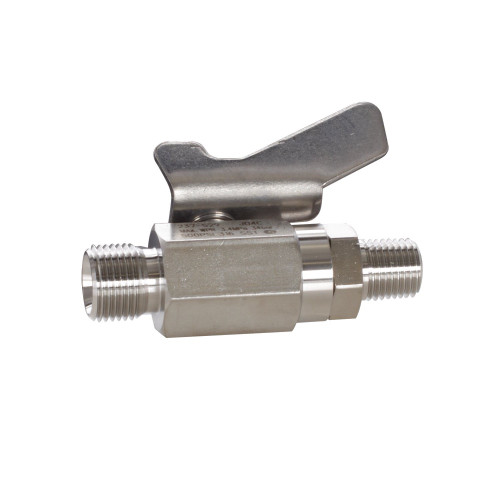

GRACO 237529 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 1/4" NPT(m) x 3/8" NPSM(m), 500 PSI
Stainless steel and PTFE ball valve designed for finishing applications with catalyst, waterborne, and other finishing materials. Features high pressure rating and versatile connection options for professional spray finishing systems.
Features:
Use for on/off fluid control. Allows safer system operation by permitting relief of fluid pressure or isolation of components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve - it could cause premature seal failure.
- Stainless steel and PTFE materials are compatible with catalyst, waterborne, and other finishing materials
- Many different connection options to meet your specific needs
Additional Specifications
- Max Working Pressure: 35 bar (500 PSI)
- Material: Stainless steel and PTFE
- Series: C
- Cavity Type: Closed Cavity
- Threading Standard: npsm threaded ends meet SAE J516 fitting recommendations
- Canadian Registration Alberta: 0C4155.2
- Canadian Registration Ontario: 0C4874.5
| Handle Type | Lever |
| Inlet Size (in) | 1/4 |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (MPa) | 3.5 |
| Maximum Working Pressure (psi) | 500 |
| Outlet Size (in) | 3/8 |
| Outlet Thread Gender | Male |
| Outlet Thread Type | NPSM |
| Seal Material | PTFE |
| Type | Ball Valve |
Features
- Stainless steel and PTFE materials compatible with catalyst, waterborne, and other finishing materials
- Many different connection options to meet specific needs
- 35 bar (500 PSI) pressure rating
- Ball valve design for reliable flow control
Applications
- Catalyst finishing systems
- Waterborne coating applications
- Professional spray finishing operations
- High pressure fluid control
Compatible Equipment
- Models in the 237528 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 1/4" NPT(m) x 1/4" NPT(m)-237543 series
Related Parts
- 237528 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 1/4" NPT(m) x 1/4" NPT(m)
- 237530 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(m) x 1/4" NPT(m)
- 237531 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(m) x 3/8" NPT(m)
- 237532 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(F) x 3/8" NPT(F)
- 237533 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" npsm(m) x 3/8" NPT(m)
- 237535 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(F) x 3/8" npsm(m)
- 237537 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" OD Tube x 3/8" OD Tube
- 237538 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" OD Tube x 3/8" NPT(m)
- 237539 - Stainless Ball Valve, 3/8" NPSM(M), 3/8" OD, 35 Bar (500 PSI)
Part of GRACO's comprehensive line of ball valves and swivels for finishing accessories. Instruction manual reference: 307628 Part of 316 Series stainless steel ball valve family. npsm threaded ends meet SAE J516 fitting recommendations. Part 237529 is listed in the Canadian Registration Number section along with other models in the same product family. All models share the same maximum working pressure and wetted parts material specifications.
Reference Manuals
- 345020 (Page 75) Finishing Accessories
- 307628 (Page 1) Low-Pressure Ball Valves and
- 308770 (Page 24) 3 :1 Ratio President Heated Circulation Pkg.
- 3A1318 (Page 21) 1:1 Ratio Husky 1050 Pump Modules and Circulation Package, Instructions/Parts
