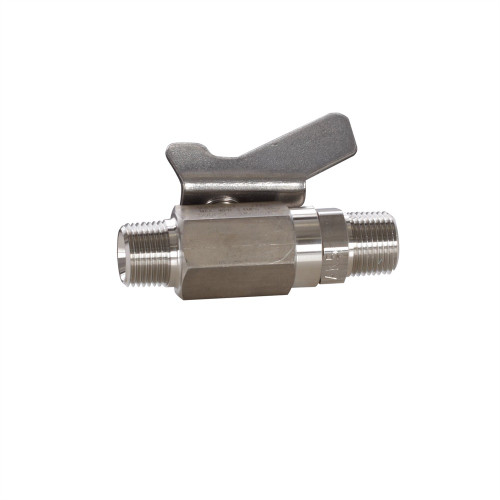

GRACO 237531 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(m) x 3/8" NPT(m), 500 PSI
Low pressure ball valve designed for finishing applications with stainless steel and PTFE construction. Compatible with catalyst, waterborne, and other finishing materials. Features 3/8" NPT male connections on both inlet and outlet for versatile installation options.
Use for on/off fluid control. Allows safer system operation by permitting relief of fluid pressure or isolation of components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve - it could cause premature seal failure.
- Stainless steel and PTFE materials are compatible with catalyst, waterborne, and other finishing materials
- Many different connection options to meet your specific needs
Additional Specifications
- Max Working Pressure: 35 bar (500 PSI)
- Material: Stainless steel and PTFE
- Series: C
- Cavity Type: Closed Cavity
- Threading Standard: npsm threaded ends meet SAE J516 fitting recommendations
| Handle Type | Lever |
| Inlet Size (in) | 3/8 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (MPa) | 3.5 |
| Maximum Working Pressure (psi) | 500 |
| Outlet Size (in) | 3/8 |
| Outlet Thread Gender | Male |
| Outlet Thread Type | NPT |
| Seal Material | PTFE |
| Type | Ball Valve |
Features
- Stainless steel and PTFE materials compatible with catalyst, waterborne, and other finishing materials
- Multiple connection options to meet specific needs
- 35 bar (500 PSI) pressure rating
- Ball valve design for reliable flow control
Applications
- Finishing operations
- Catalyst applications
- Waterborne material handling
- General finishing material flow control
Related Parts
- 237528 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 1/4" NPT(m) x 1/4" NPT(m)
- 237529 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 1/4" NPT(m) x 3/8" npsm(m)
- 237530 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(m) x 1/4" NPT(m)
- 237532 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(F) x 3/8" NPT(F)
- 237533 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" npsm(m) x 3/8" NPT(m)
- 237535 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(F) x 3/8" npsm(m)
- 237537 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" OD Tube x 3/8" OD Tube
- 237538 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" OD Tube x 3/8" NPT(m)
- 237539 - Stainless Ball Valve, 3/8" NPSM(M), 3/8" OD, 35 Bar (500 PSI)
Part of GRACO's ball valve family for finishing accessories. Instruction manual reference: 307628 This is part of the 316 Series stainless steel ball valve family. Model 237531 features 3/8 NPT male threads on both ends. Part 237531 is listed in the Canadian Registration Numbers for Alberta (0C4155.2) and Ontario (0C4874.5). Maximum fluid working pressure is 35 bar/3.5 MPa/500 PSI. Wetted parts are 316 Series Stainless Steel.
Reference Manuals
- 345020 (Page 75) Finishing Accessories
- 307628 (Page 1) Low-Pressure Ball Valves and
